Curioni 3100 NT 2 3050 x 1320 mm

Flexo Folder Gluer Production Line
Color 2
Max. Size : 3050 x 1320 mm
Min. Size : 760 x 350 mm
Condition : Good

Machine Line Configuration:
1. MARTIN Prefeeder
The Martin prefeeder is suitable for use with this line and can also be used with larger machines.

Technical capacity:
Maximum sheet size: 3,200 x 1,600 mm
Maximum stack height: 2,200 mm

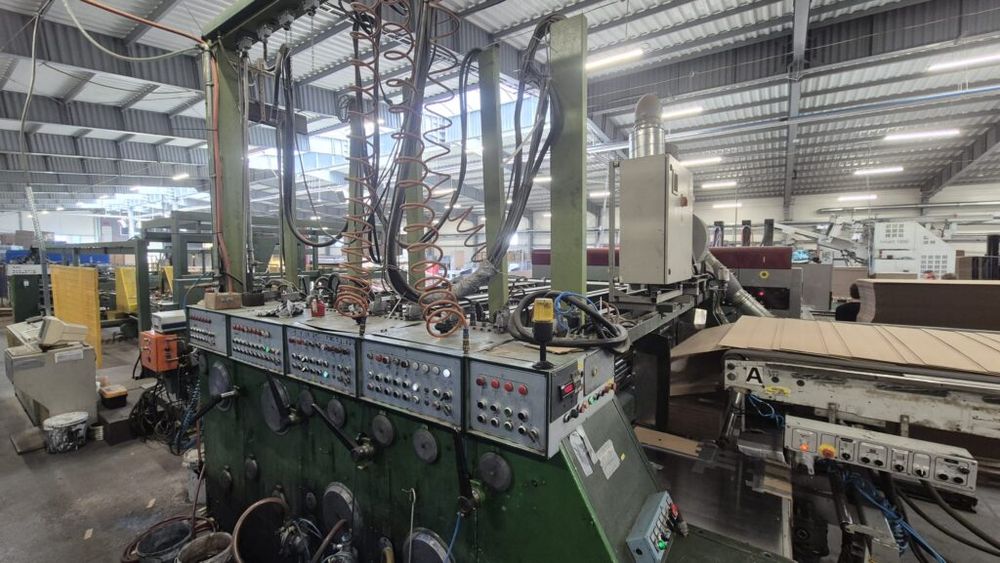

2. CURIONI 3100 NT Flexo Folder Gluer
Technical specifications:
Maximum cutting capacity: 3,050 x 1,320 mm without skip feed
Minimum cutting capacity: 760 x 350 mm
Minimum board height: 50 mm
Maximum board height: 870 mm
Shorter knives can be used to achieve larger formats if required.

Main equipment:
Suction feeder rebuilt by EMBA in 2003
Feeder roller included
2 flexo printing units
Ceramic anilox roller system
Rubber roller system
Rollers are regularly refurbished
Rubber roller included
Bottom printing
Motorized slotter with spare knives
Rotary die cutter
Folder-gluer section
Nordson gluing system
Bundle stacker with counter

3. MOSCA U-ATRI Bundle Strapping Machine
Manufacturer: Mosca
Model: U-ATRI
Year: 2003
Bundle strapping machine for finished bundles

Approximate Line Dimensions:
Prefeeder
Length: approx. 9 m
Width: approx. 5 m

Curioni 3100 NT
Length: approx. 21 m
Width: approx. 5 m

Mosca Strapping Machine
Length: approx. 3 m
Width: approx. 3 m
