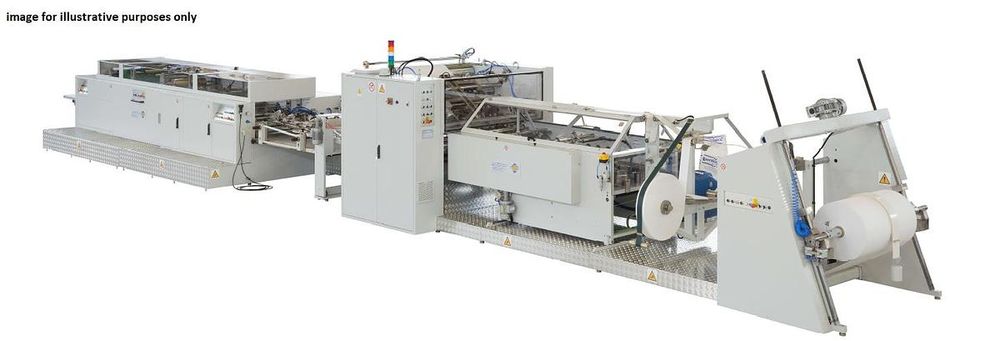

Curioni SUN MASTER 540

Quare bottom paper bag machine with in-line twisted handle unit
Condition Used (visible in production)
Bag width Min. 220 mm - Max. 540 mm (Bag width with handles: Min. 240 – Max. 540 mm)
Bag lenght Min. 320 mm - Max. 650 mm (Bag lenght with handles: Min. 320 - Max. 550 mm)
Bottom width Min. 80 mm - Max. 200 mm
Cut lenght Min. 400 mm - Max. 780 mm
Weight of paper Min. 80 - Max. 130 gsm
Reel width: Min. 720 - Max. 1430 mm
Diameter of the reel Max. 1500 mm
Inner core diameter: 76mm – 3”

Handle unit M100 (TWISTED):
Type of handle: twisted-paper cord or cotton with a twisted paper core
Twisted paper cord diameter: 4 - 5 mm
Handle width: 100 mm
Handle Patch height: 50 mm
Handle Patch length: 200 mm
Reels width for paper rhandles: 100 mm
Max. diameter of paper reels for patches: 1050 mm
Inner core diameter of paper reels for patches: 76 mm
Weight of usable paper for handle patches: 90 -130 gsm

General information:
Total gross weight kg 21000
Total installed electrical power: Kw 35
Power supply three-phase 400 V + NEUTRE + GROUND at 50 Hz + 5%
Compressed air supply 600/700 kPa, dry and clean
Compressed air consumption: 100 Nl/min
Dimensions of the machine: length 15500 mm, width 2800 mm, height 2130 mm
Machine color grey RAL 7035
Visible in operation: Yes
