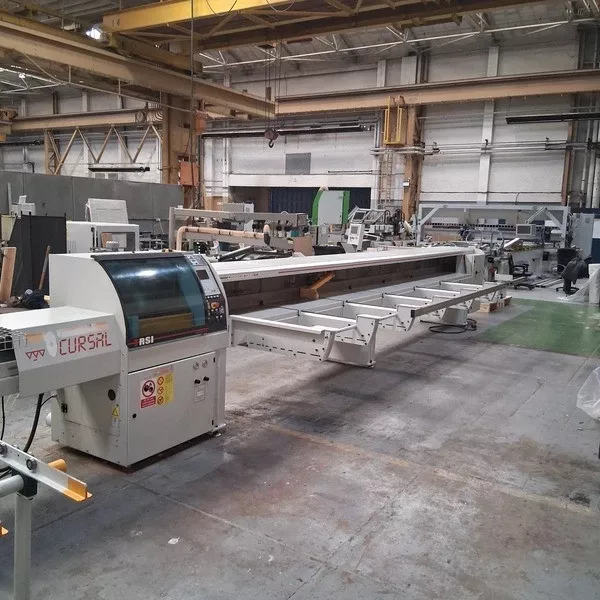

Cursal TRSI 8000 AP

Automatic Crosscut Saw With Integrated Pusher
Durable and versatile automatic crosscut saw with exceptional speed and accuracy.
Impressive speed and accuracy
CNC programmable sequential cutting capabilities
Optional loading and unloading

Specification :
6000 mm In feed capacity, push feed crosscut Saw
Single-block structure: the frame made of welded - worked steel
Pneumatic side-aligner installed before of the blade
Pneumatic blade-press with mobile casing: stroke 150 mm.
Breaking press-wheels with horizontal axis installed after blade
Cutting height on the guide: 120 mm.
Width of the boards: min. 40 - max. 250 (300) mm
Automatic cutting control managed by the computer
Vertical alternated blade movement: pneumatic system with totally controlled stroke
Saw blade HM steel with alternate teeth Ø 500 mm, hole Ø 35 mm - Z=120
Blade motor HP 7,5 with automatic brake
Cutting time: adjustable from 0.3 to 2 seconds
CNC unloading belt with 2 programmable ejectors
