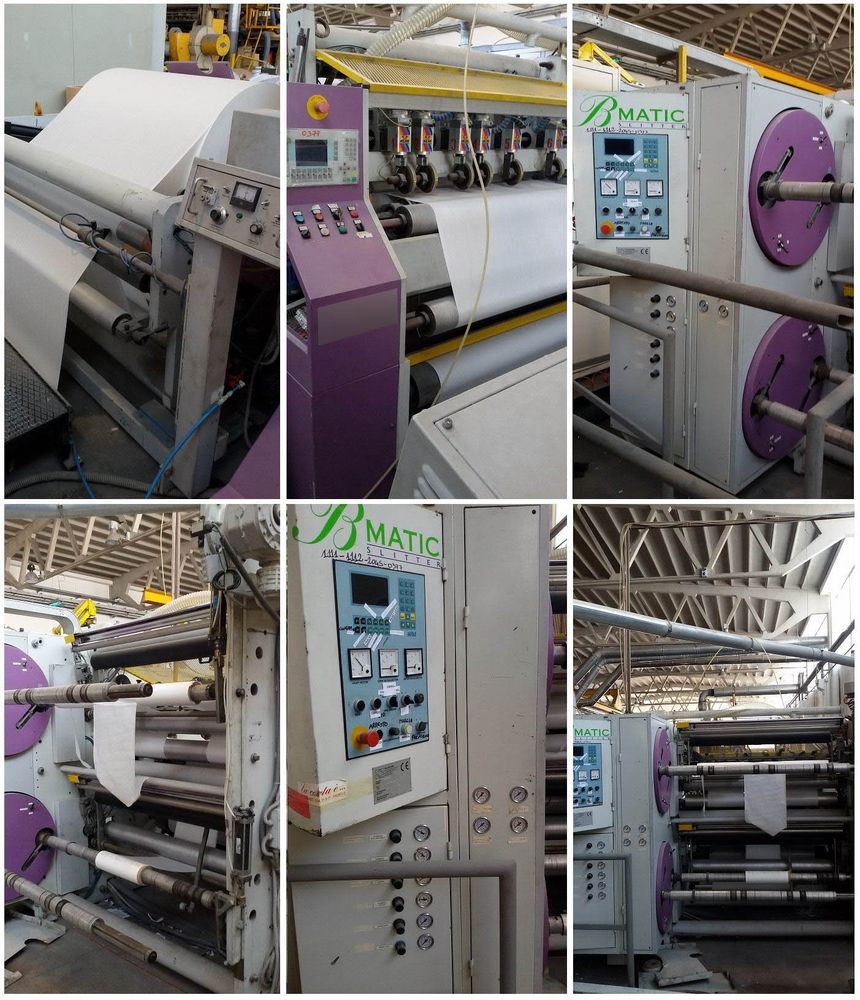

CUTTER

MACHINE TYPE: BMATIC CUTTER
USEFUL LIGHT: 1600 mm
COMPRESSED AIR: Pressure Bar 6
lt 10 at 6 Bar. (each rewound)
VOLTAGE: VOLT 400 Three-phase Hz 50

INSTALLED POWER:
Main motor 3,6 kW AC
Winding motors kW 14.5 AC
Brake motor kW 14.5 AC
KW 2.2 three-phase trimmer motor
KW 0.36 three-phase fans
Three-phase kW 0.5 turret motor
ELECTRIC POWER kW 32

MOTHER COIL:
max width 1600 mm
max diameter 1000 mm
core diameter 76-152 mm

DERIVED COILS:
max diameter 600 mm
core diameter 76 mm
MAX SPEED: 450 m / min.
WEIGHT: about 3500 kg

ALLOWED TEMPERATURE:
MIN - 5 °
MAX + 50 °
MAX 95% HUMIDITY (without condensation)
