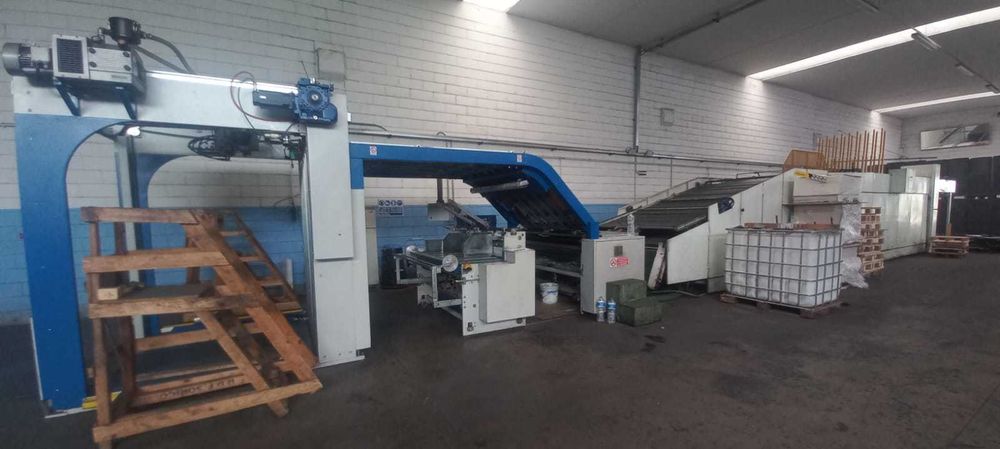

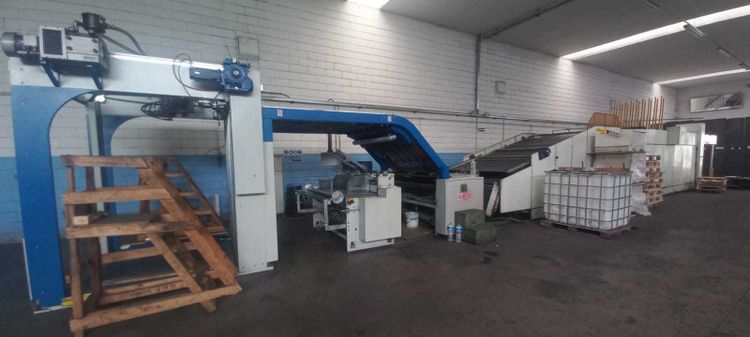

CVS, Meccanica FASTLINEAR 165 Laminators Sheet

Max sheet size: 1600x1600 mm
Min. sheet size: 500x500 mm
Mech. speed: 10.000 sheets/h.

Vertically motorised head and brushless motor transmission
Automatic upper sheet feeder unit complete with: vacuum pump, automatic lift with brushless motor
for raising/lowering the pallet, independent motorisation 90 cm wide cover transport belts.
Connecting bridge and conveyor belts for transporting sheets from the feeder to the coupling machine
Cardboard feed unit with 6 suction belts with speed adjustable via touch screen
Coupling unit for cold vinyl glue: Machine edge system
CARDBOARD FEEDING UNIT (MTI)
This unit allows the lower dencarton to be fed in by means of a synchronised brushless stepper motor synchronised with the coupling unit
The length of the sheet is adjusted by the touch screen
The MTI consists of 6 belts complete with suction device, thus allowing better introduction of the sheet into the coupling unit.

GLUE COUPLING GROUP:
All rollers are mounted on ball bearings.
The gluing roller is made of chrome-plated and ground steel, allowing for perfect glue distribution and low glue consumption.
The speed of the rollers can be adjusted from the touch screen.
During machine stops and breaks, the glue rollers continue to rotate thanks to a separate motor that keeps the glue fluid.
The Fast Linear 165 bundle maker consists of Bundle forming unit: Bundle turning unit, Non-stop high-stack stacker unit
with pneumatic levellers: Pneumatic levellers with automatic positioning
Metal walkway for operational control of the unit (bale former, stacker stacker.
Fully automatic positioning of the format both in width and length:
Machine edge system: NO-STOP HIGH-STACK STACKER GROUP:
This unit eliminates the need for manual collection of the finished product (coupled sheets) by the operator,
thus eliminating the risk of awkward postures and manual handling of loads.
