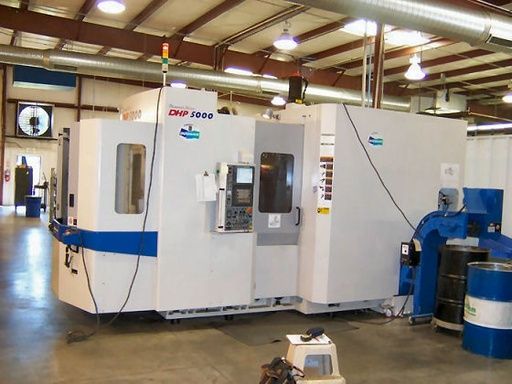

Daewoo DHP-5000 4 Axis

DAEWOO DHP-5000
Year: 2005

X-Axis Travel 33.4"
Y-Axis Travel 27.6"
Z-Axis Travel 29.5"
Pallets 2 x 19.7" x 19.7"
Pallet Indexing 1 degree
Table Load Capacity 1,100 lb
Max Swing of Part 31.5" diameter
Max Part Height 36.6"
Spindle Speed 14,000 RPM
Spindle Motor 20 HP
Spindle Taper #40
Automatic Tool Changer 60 positions
Rapid Traverse Rate 2,362 IPM
Accuracy ±0.00020"
Repeatability 0.00008"
Control FANUC 18iM with CRT
Rigid Tapping
Coolant Through Spindle 1000 PSI
Air Blow
2 Tombstones
8 Kurt Vises
