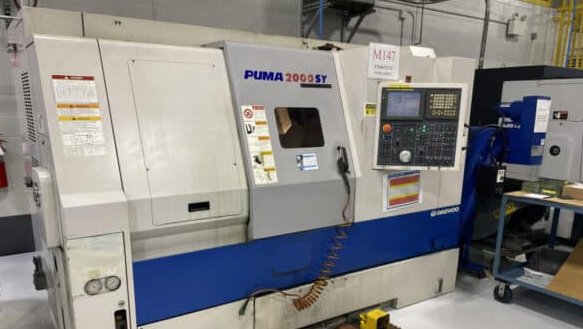

Daewoo Fanuc Series 18i-TB CNC 5000 RPM Puma 2000SY 4 Axis

Swing Over Bed: 23.6″
Swing Over Carriage: 21.6″
Max Bar Capacity: 2.625″
Max Turning Diameter (Main Spindle): 13″
Max Turning Length: 20.1″
Distance Between Main & Sub-Spindle: 33.8″

Y-Axis Travel: 3.94″
X-Axis Travel: 9.8″
Z-Axis Travel: 22.8″
C-Axis Minimum Programmable Angle: 0.001°
C-Axis Rapid Traverse: 200 RPM

Main Spindle Speed: 45–5000 RPM
Spindle Nose: ASA A2-6
Draw Tube ID: 2.677″
Spindle Bore Diameter: 2.99″
Spindle Motor Power: 30 HP
Max Spindle Torque: 351 ft-lbs
Turret Positions: 12

Control: Fanuc Series 18i-TB CNC
Sub Spindle
Y-Axis
Milling Function
Chip Conveyor
Parts Catcher Ready
Tool Presetter
