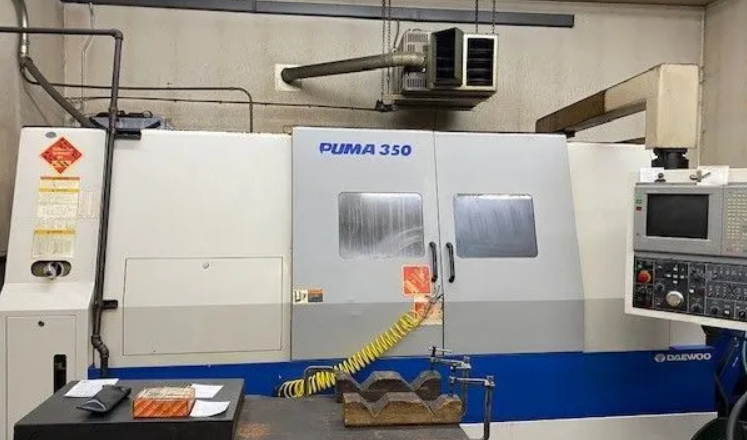

Daewoo Mitsubishi CNC 2000 RPM PUMA 350B 2 Axis

X-axis travel: 14.3"
Z-axis travel: 43.5"
Control: Mitsubishi CNC
Bar capacity: 4.5"
Swing over bed: 27.55"
Maximum turning diameter: 21.65"
Machining length: 41.4"
Spindle speed: 20 - 2,000 RPM
Spindle motor: 40 HP
Spindle nose: ASA A2-11
Spindle bore: 5.20"
Spindle torque: 1,531 ft-lbs
Chuck size: 18"
Number of axes: 2
Number of turret stations: 10
Turning tool shank size: 1.0"
Boring bar capacity: 2.5"
Turret index time: 0.25 sec
Turret clamping force: 35,200 lbs
Turret index repeatability: ±0.0005°
X-axis rapid traverse: 630 IPM
Z-axis rapid traverse: 630 IPM
X-axis repeatability: ±0.00008"
Z-axis repeatability: ±0.00008"
Z-axis thrust: 6,800 lbs
Tailstock: Yes
Programmable tailstock
Tailstock quill diameter: 4.7"
Tailstock quill stroke: 4.7"
Tailstock quill thrust: 2,400 lbs
Tailstock taper: MT #6
Coolant pump pressure: 70 PSI
Coolant pump flow rate: 10 GPM
Coolant pump motor: 1.5 HP
Chip conveyor
2-speed gearbox
Dimensions: 174" x 77" x 73"
Weight: 16,500 lbs
Condition: Used
