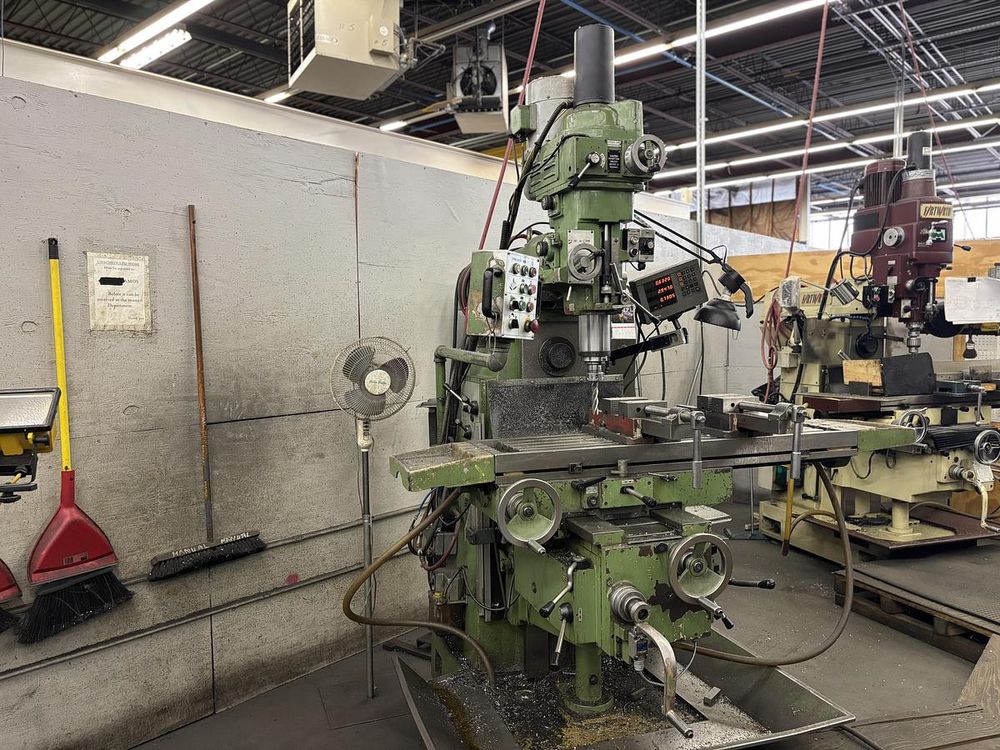

Dah Lih DL-950597 Vertical 3800 rpm

Ref : 2800120-3-GO

Condition : Used

Manufacturer : Dah Lih

Model : DL-950597

Type : Vertical

Spindle Speed : 3800 rpm

Year(s) : 1997

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Table size 53.14" x 12.2"
X axis travel 37.4"
Y axis travel 13.77"
Z axis travel 18.5"
Rapid traverse X/Y/Z 126 / 126 / 50 in/min
3-axis Heidenhain DRO
Power feeds on all axes
Power drawbar
Maximum workpiece weight 704 lb
Vertical spindle speed 3800 rpm
Horizontal spindle speed 2040 rpm
Tool taper ISO 40
Vertical motor power 5 HP
Horizontal motor power 5 HP
Vertical head tilt ±90°
Quill diameter 4.33"
Quill stroke 5.51"
Ram rotation 360°
Machine dimensions 83" x 83" x 98.5"
Machine weight 6173 lb
