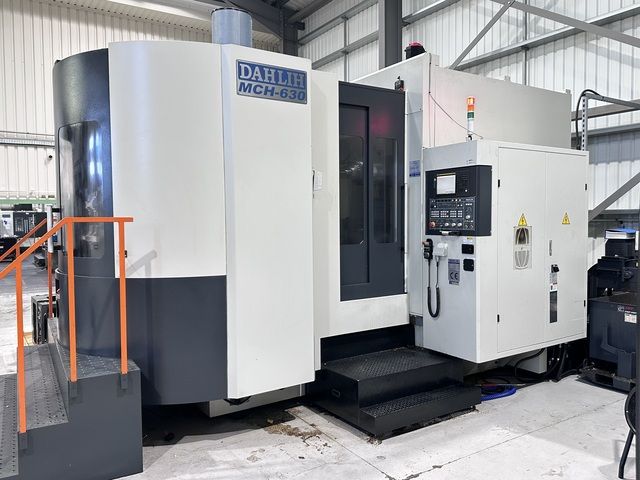

Dah Lih MCH-630 4 Axis

X-axis travel: 1000 mm
Y-axis travel: 850 mm
Z-axis travel: 800 mm
Rapid feedrate: 24 m/min
Maximum cutting feedrate: 8000 mm/min
B-axis: 1° indexing
Control: FANUC 0i-MF
Coolant system
Interlocked guards
Low voltage light
Swarf conveyor
Distance from table top to spindle center: 50–900 mm
Distance from spindle nose to table center: 160–960 mm
Maximum workpiece weight: 1200 kg
Spindle speed: 6000 rpm
Tool holder taper: BT50
Tool change capacity: 60 stations
Maximum tool diameter: 120 mm
Maximum tool diameter with adjacent pockets empty: 240 mm
Maximum tool length: 400 mm
Maximum tool weight: 20 kg
Pallet size: 630 × 630 mm
Number of pallets: 2
Pallet change time: 15 s
Machine length: 4500 mm
Machine width: 6230 mm
Machine height: 3380 mm
Machine weight: 22000 kg
