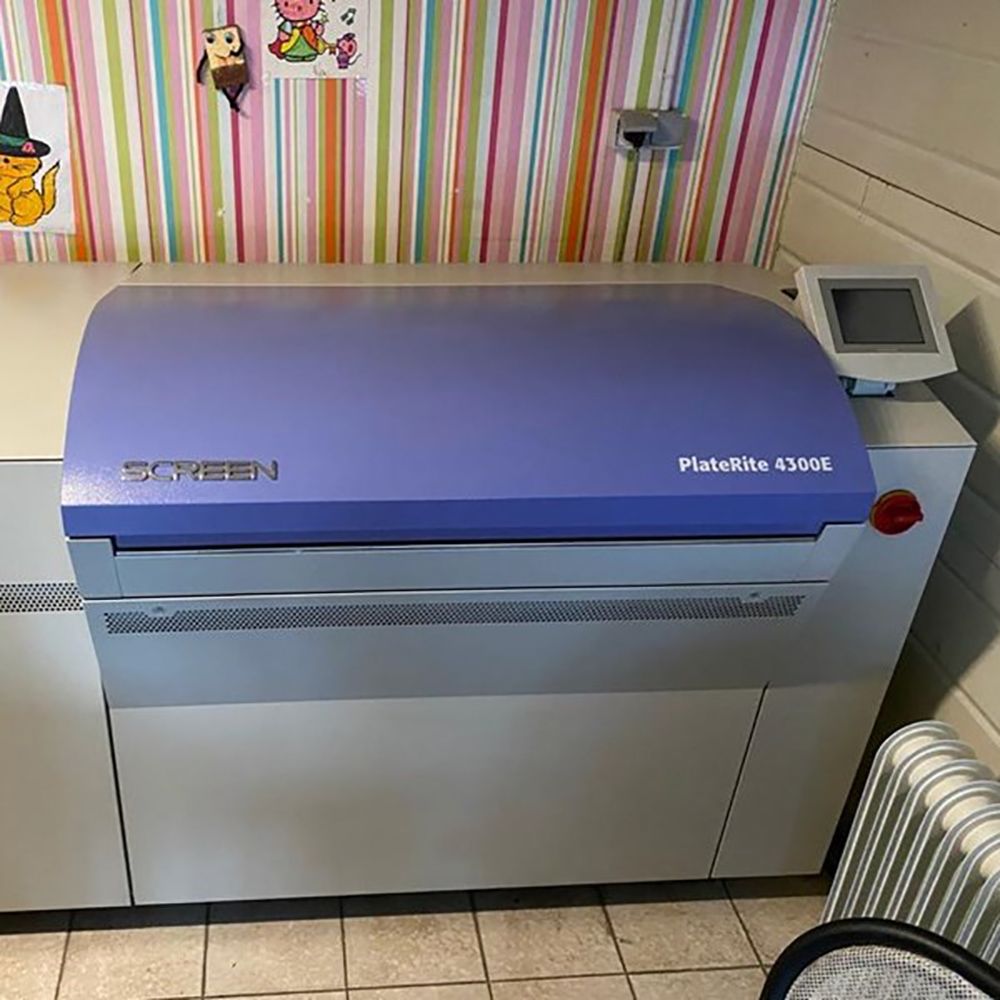

Dainippon Screen PT -R4300E

Device type: Semi-automatic exposure system for thermal plates
Plate dimensions:
Maximum size: 830×660 mm
Minimum size: 324×370 mm
Thickness: 0.15 to 0.30 mm
Resolution: 2400 dpi
Production speed: Up to 11 sheets per hour at 2400 dpi
Laser light source: 16-channel infrared laser diodes with a wavelength of 830 nm
Automatic punching system: Yes, supports various punching types to ensure accurate registration on the kitchen
Loading options: SA-L4300II (single-cassette) or MA-L4300II (multi-cassette) can be equipped with autoloaders

Dimensions:
Main unit: 1,770×1,028×1,185 mm
Fan unit: 429×600×361 mm

Weight:
Main unit: 670 kg
Fan unit: 25 kg
Power supply: Single-phase 200–240 V, 20 A, 4.0 kW

Environment:
Temperature: 18–26°C
Humidity: 40%–70% (non-condensing)
