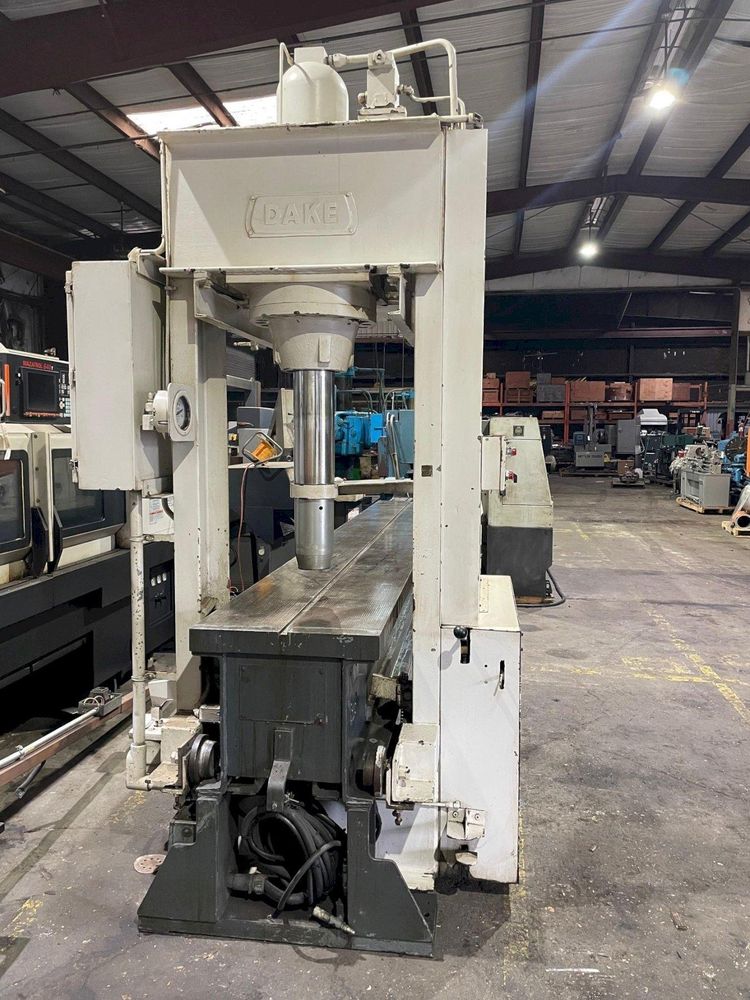

Dake 19-381 125 tons

Press Force: 125 tons
Distance Between Side Frames: 30" L-R
Area of Bed: 24" L-R x 180" F-B
Stroke of Ram: 0 - 14" maximum
Daylight Opening: 19"
Main Ram Diameter: 8"/6" x 4975 PSI
Floor to Top of Bed: 40"
Power Unit: Hydraulic pump driven by 10 HP 1745 RPM 230/460/3/60 motor
Frame Driven By: 1/2 HP 1725 RPM 230/460/3/60 motor
Pressing Speed: 17"/minute to 125 tons
Return Speed: 38"/minute
Controls: Pushbutton for start and stop
Operator Hand Lever
Lever for Power Frame Movement
Pressure Gauge
Machine Weight: 12,000 lbs
Overall Dimensions: 65" L-R x 180" F-B x 166" H
Equipped With Motorized Gantry
Floor Standing
