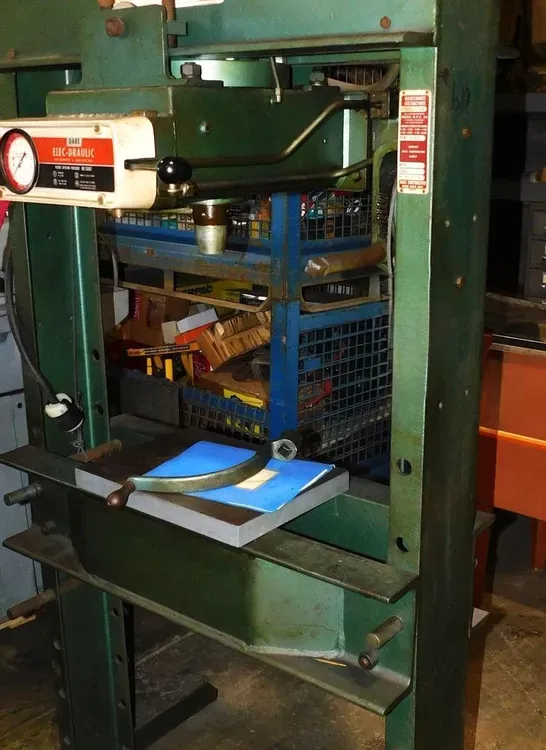

Dake 5-050 50 tons

DAKE 5-050

Type: Hydraulic H-frame press
Capacity: 50 tons
Operation: Electric
Horsepower: 2
Voltage: 220V/440V, 3-phase
Width between uprights: 32-3/4"
Width between table channels: 7-1/4"
Minimum ram to table: 5"
Maximum ram to table: 40"
Ram travel: 10"
Horizontal workhead travel: 14-3/8"
Footprint: 43-1/2" x 36"
Height: 87"
Weight: 1,320 lbs
Base: 43-1/2" x 36"
Ram advance speed: 40 IPM
Ram pressing speed: 7 IPM
RPM: 1,800

Movable workhead with ball bearings
Overload protection safety valve
Self-locking table hoist
Single-acting cylinder with internal spring return
Variable ram speed control
Rapid return with stoppable valve
Ram stroke indicator
Forged steel V-blocks included
Flat ram nose included
Pressure gauge included
Workhead included
Steel table plates included
V-ram nose included
Stroke indicator included
Safety relief valve included
