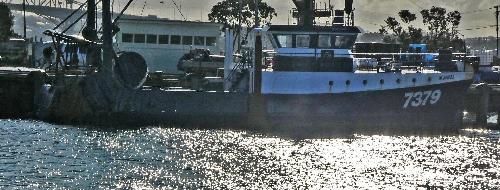

Damen Shipyards TRAWLER Gross Tonnage 156.7 T

DAMEN SHIPYARDS TRAWLER
Year 1979

LOA 26 m
Registered Length 24.95 m
Beam 7 m
Construction Steel
Engine Cummins KT38MO 625 kW
Engine Hours 32,403 (as of 13 June 2023)
Auxiliary Engine Cummins 6BT5.9-D(M) 91 kW
Auxiliary Engine Hours 20,406 (as of 13 June 2023)
Generator 100 kVA
Gearbox Reintjes
Propeller Fixed blade
Steering Electric/hydraulic
Bollard Pull 12 tonnes
Fuel Capacity 33,000 litres
Water Capacity 11,000 litres
Max Speed 10.2 knots
Service Speed 9 knots
Wheelhouse Forward amidships, raised foredeck
Hold Capacity 38 T
Hold Type Chiller
Fishroom Capacity 1,350 bins
Fishroom Construction Stainless steel over poly with rockwool insulation
Hold Temperature -0.6 °C piped refrigeration
Freezer Plant Snowkey SFM 30W, 3t per 24hr
Compressor Bitzer
Accommodation 7 berths forward
Cabin Heating Electric heaters
Galley SS sink
Galley Equipment Domestic electric range, microwave, fridge, freezer
Facilities Hot water, toilet, shower, saloon table with seating, air conditioning
Winch System Thyboron winch system (new April 2020)
Winches Hydraulic split winches
Winch Pull 50 tonnes
Winch Capacity 1500 m x 16 mm cable
Gilson Winches 2
Sorting Table Truck deck table (new 2020)
Net Drum Hydraulic net roller (new 2020)
Fishing Gear 2 x scraper trawls 50 m
Trawl Doors 2 x Kiwi doors 2.75 m²
Bridles Included
Cargo Winch Electric JIB, 1,000 kg capacity
Anchor System Electric windlass
Anchors 2 x Danforth
SSB Radio Furuno FSB-1552
VHF Radios Icom ICM59, Icom ICM4236
Radar Furuno 36 mile
GPS Furuno GP33
Plotter Software Seaplot, MaxSea
Sounder Furuno FCV1150
Autopilot Furuno FAP-330
Net Monitor Marport
Rudder Indicator TMQ
Battery Charger Victron
Cell Data Backup Airlink MP70
Satellite Phone Iridium
Tracking System Triton CLS
AIS Furuno FA-50 Class B
Alarm Monitoring Ezyswitch text system
Printer Included
Computer Included
Stereo Pioneer AM/FM
Television Trackvision TV
CCTV Cameras Swann x 5
Emergency Fire Pump Kohler diesel (steering flat)
Emergency Fire Pump Electric (engine room)
Life Rafts 2 x 8 man
EPIRB 406 float free
Survey Class NZ Certificate of Survey
Survey Limits NZ Offshore
Survey Expiry Date 28/09/2026
