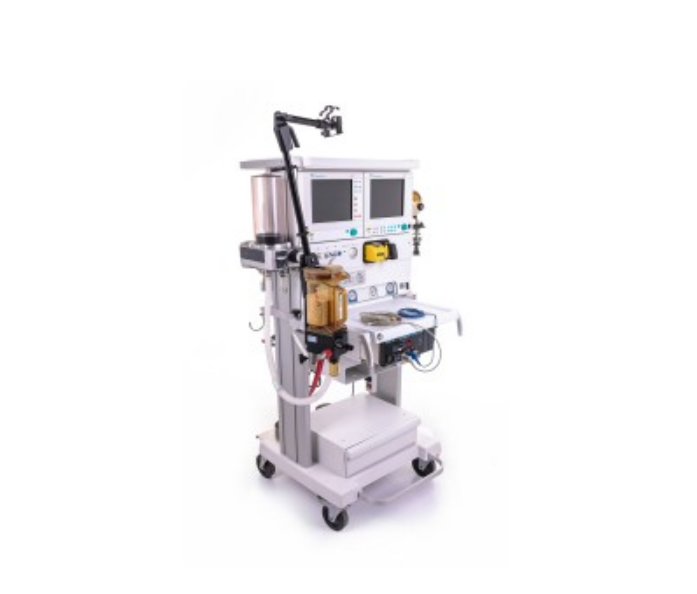

Datex Ohmeda ADU S5

Reconditioned (used),
Technical condition: very good,
Visual condition: very good,
Real product photos,
Swedish production,
Power supply: 230 V,
Emergency power supply: via 4 new built-in batteries 12 V / 2.3 Ah,
The Datex Ohmeda ADU S5 utilizes electronic control of both gas delivery and
vaporization, enabling full use of automatic data capture in
care information management and minimizing manual documentation.
It has one port for Aladin cartridges along with one compatible vaporizer included,

Specification:
Ventilator measurement functions:
VT: 20 - 1400 ml,
f: 2 - 60 bpm,
Ti/Te: 1:4.5, 1:3, 1:2.5, 1:2, 1:1.5, 1:1, 2:1,
PEEP: 2 - 20 mbar,

The camera has:
Compact patient breathing system with oxygen sensor, placed on a movable arm,
Movable arm with mounting for patient cables,
DATEX OHMEDA Removable Suction Cup,
Strips for mounting additional equipment,
Tabletop with working surface dimensions of 44 x 30 cm,
Two gas cylinder holders,
Evac connector,
Powered by gases from a central installation: 2 x O 2 , N 2 O, 2 x AIR,
Smooth manual regulation of gas flow: O 2 , AIR, N 2 O (manometers),

Equipped with:
DATEX - OHMEDA Cardiac Monitor Model S/5:
ComWheel navigation knob operation makes it easy to enter information and
navigate the screen,
Custom display options allow you to view and analyze data in graphical and
numerical formats, summarize measurements and trends in real time,
and freely configure every screen element - from curves to parameter names,
Acoustic and visual alarms,
Screen diagonal: 10.5",
Overall dimensions: 33 x 26 x 16 cm,
DATEX OHMEDA S/5 Ventilator Monitor,
Inhalation vaporizer for sevoflurane DATEX OHMEDA ALADIN A-VSEVO:
Filling type: Quik Fill,
Maximum capacity: 250 mL,

Modules:
M - ESTP: patient monitor module,
M - NIBP: pressure measurement module,
M - CAIOV: gas module,
Mobile, on wheels, including 2 with brakes,
Keyboard on the control panel in: English,
Included in the set:
Gas supply hoses with ends to be chosen by the customer (AGA or DIN),
User manual in English (PDF),
Power cord,
The patient's respiratory system,
Sampling line for gas measurement,
3-lead ECG cable,
SPO 2 sensor ,

Dimensions: 100 x 75 x 141 cm
Weight: 163 KG
