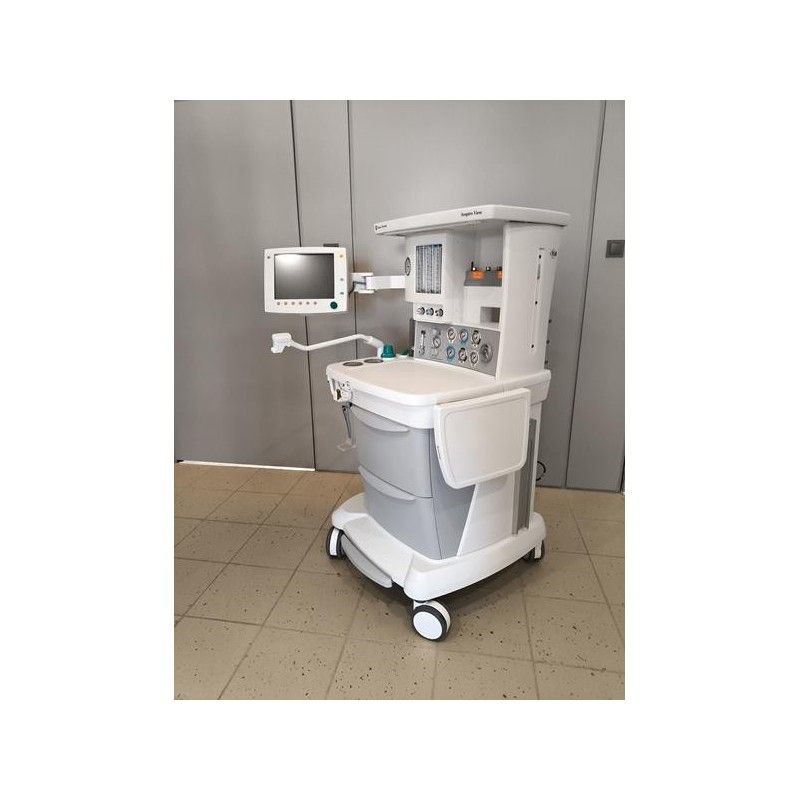

Datex Ohmeda Aespire View

Power supply: 230 V, and through one new 6v 4.5 Ah battery,
Frequency: 50/60 Hz,
It has two ports for vaporizers with the Selectatec (S-2000) mounting system,
Supplied with gases from the central installation: O2, N2O, AIR,
Smooth regulation of gas flow - O2, N2O, AIR: 0.0 - 15 l / min (manometers),
Built-in patient breathing system ABS with oxygen sensor,
Built-in injector suction module,
Smooth regulation of suction force,
Manometer,
Built-in alarms and low and high pressure valves,
Smart-Vent 7100 Ventilator:
PMAX (V): 15 - 70 mbar,
VT: 5 - 1500 ml,
Breath rate per minute: 4 - 65,
Tidal volume range: 45 – 1500 ml,
Tip/Ti: 0% – 50%,
Inspiration/expiration ratio: 2:1 – 1:6,
PEEP: 4 – 30 cmH2O,
Pinsp (P): 5 – 65 cmH2O,
Insp Flow: 10 – 75 l/min,
PPS (SIMV/PS) – pressure support: 3 – 20 cmH2O,
Ventilator function display placed on a movable arm (clear and easy to use),
Possibility to select menu in the following languages: PL, IT, FR, ES, EN, DE, NO, TR, ZH, JA, RU, GR, CS, MG, NL,

It has two ventilation modes:
Volume variable,
Pressure variable,
