Davis Standard 60” Co-Ex Sheet Line

60” Wide Davis Standard Co-Ex Sheet Line
Lines Consists Of The Following Pieces:
4.5” Davis Standard Single Screw Extruder, 30:1 L/D, Model Thermatic III,
Vented Barrel With 7.5 HP Nash Vacuum Pump, Air-Cooled Barrel, 6 Barrel Zones,
10 Die Zones, 45IN45HT Gearbox Rated To 360 HP, 17.49:1 Gearbox Ratio,
300 HP AC Motor, Control Panel With 16 Eurotherm 2208 Temperature Controllers,
New In 2001
4.5” Dynisco EH-45 Hydraulic Slide Plate Screen Changer With Hydraulic Power Unit
Dynisco 275 Melt Pump With Static Mixer, AC Motor
3.0” Davis Standard Co-Extruder – Additional Information Coming Soon
58" Wide Sheet Die

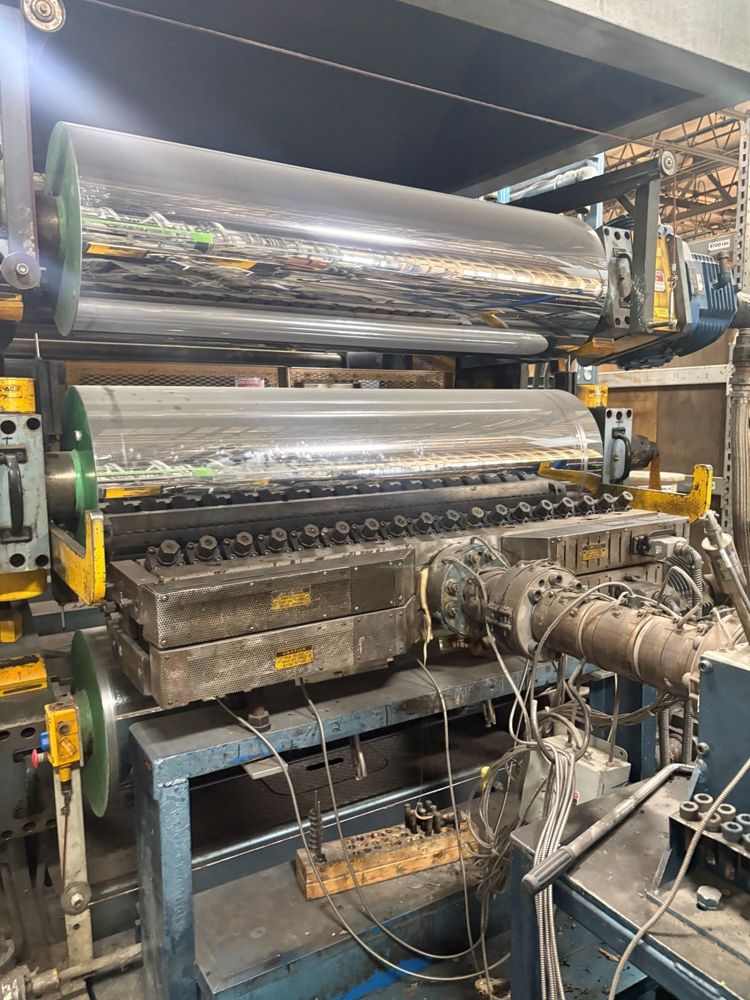

60” Wide Davis Standard Ex-M-Plar III Roll Stack, Upstacking, 18” Diameter Rolls, Individually Driven Rolls, 3 HP Motors, 25’ Long Cooling Conveyor,
Hydraulic Roll Pressure
60” Wide X 8” Diameter Rubber Pull Rolls, 3 HP AC Motor
72” Wide Famco Shear
TH60 Trim Saw, Two 10 HP Motors With AC Inverter Drives, Manual Adjustment,
36” To 60” Finished Width
SH60 Traveling Sheet Saw – Cross Cut, 20” Table Travel, 10 HP Motor With
AC Inverter Drives, Pneumatic Clamp Pressure
Allen Bradly PLC Control System, SLC-500
460/3/60
