DCL2 550 550 mm

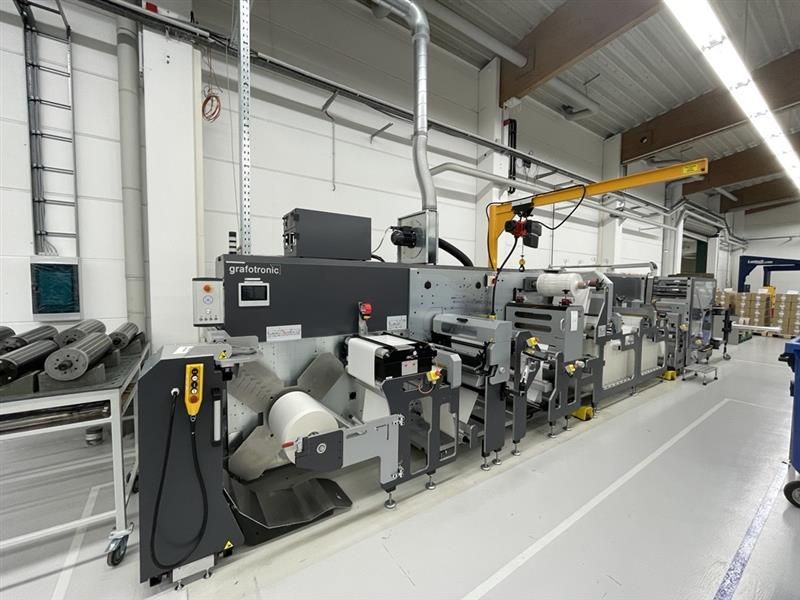

GRAFOTRONIC DCL2 550
Web Width 550 mm
Condition Used – in productionCE Marking Yes

Main Configuration:
Unwinder Module
Max. roll Ø 1000 mm / weight 430 kg
Ultrasonic sensor and web guide ±15 mm
Splice table with clamps, servo brake, reel lift
Flexo Printing / Coating Module (10–24" repeat)
GEW E2C UV dryer
Ceramic anilox 400 l/cm – 5.5 cm³/m²
Stainless ink pan 1.2 L, reverse-angle doctor blade
Re-register drive for overprinting
Max. speed 100 m/min – tolerance ±0.1 mm
Die-Cutting Module (10–24" repeat)
Servo register system, anvil & support roller
Contact matrix rewind, stripping bar
Delam/Relam before die-cutting (limit 70 m/min)
Max. speed 250 m/min, tolerance ±0.1 mmInspection & Slitting Section
Missing Label Detection (MLD) up to 220 m/min
Automatic Sci-Fi knife system (12 sets)
Vacuum edge-trim removal
Auto-set under/back scorer (2 knives)
Semi-Automatic Turret Rewinder
2 × Ø 600 mm rolls
Semi-automatic cutting and push-out system
Label & meter counters
Core diameters 40–76 mm

Additional Equipment:
Anti-static brush
Tablet with housing and accessories
ERP interface
Crane for magnetic cylindersMaterials
Foil 30–250 µm
Paper 100–250 µm
General ConditionThe machine is in production, overall in good working order.
According to the printer, two UV units require lamp replacement, which represents a minor cost.
All other modules are fully functional
