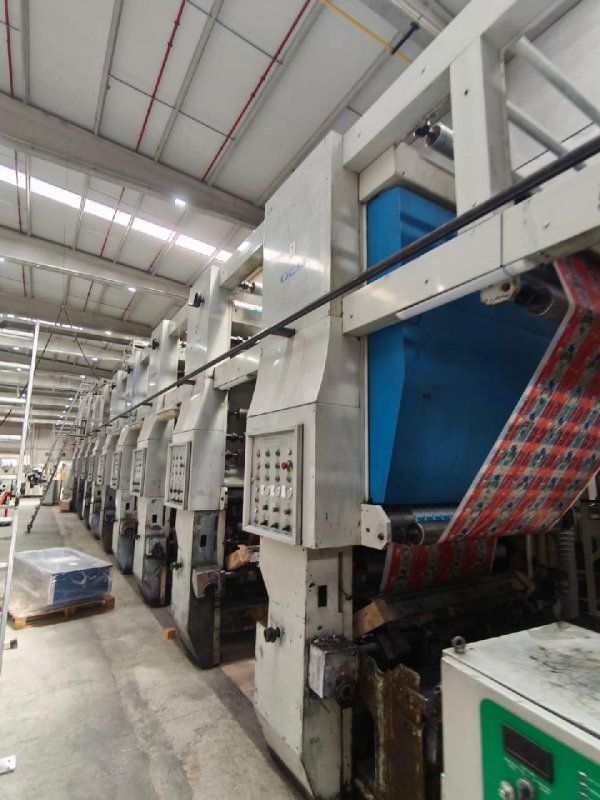

DCM Brio 1200 mm
Ref :
2766962-4-MT
Condition :
Used
Manufacturer :
DCM
Model :
Brio
Size :
1200 mm
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Number of colors 9
Print possibilities 9+0 , 8+1
Drive Cardan
Web width (mm) 1300
Print width (mm) 1200
Print repeat range (mm) min. 400mm, max. 1000mm
Drying heat surce 1 blowing fan ach unit, 1 general exhaust fan , heating by thermo oil heat exchangers , one heater each unit .
Included thermo oil boiler Maxon 1100 kW
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Videocamera BST camera systems movable
Register controll Eltromat
Corona treatment Sherman GX 40R 4 Kw
Print cylinders 350 shaft cylinders
Note Turning bar
