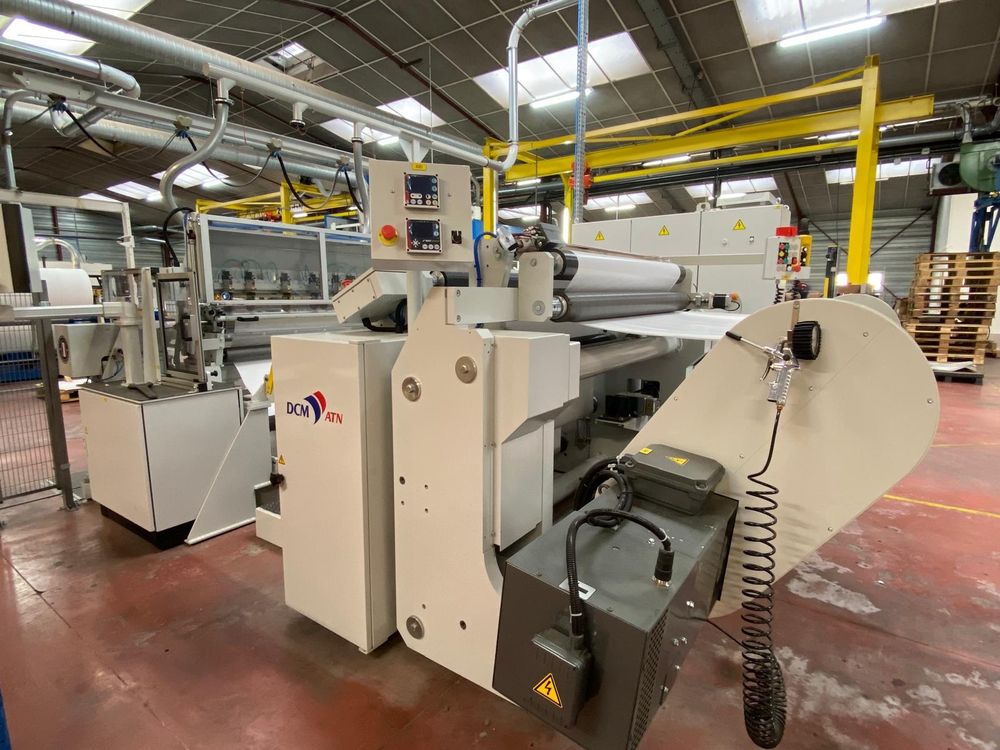

DCM Leopard LMA 1420 mm

Maximum parent roll width: 1420 mm
Minimum parent roll width: 600 mm
Maximum parent roll diameter: 1500 mm
Maximum parent roll weight: 2500 kg
Maximum unwinding tension (Ø1500 mm): 600 N
Minimum unwinding tension (Ø1000 mm): 40 N
Minimum standard slitting width: 100 mm
Maximum rewinding width: 1400 mm
Maximum rewinding diameter: 1050 mm
Maximum rewinding weight:
Ø76 mm shaft: 600 kg
Ø152 mm shaft: 1000 kg
Maximum rewinding tension: 600 N
Maximum production speed: 600 m/min
Power supply: 3 x 400V 50Hz
Installed power: 30 kW
Compressed air: 6 bar, dry
Compressed air: 5–40°C
Noise level: 82 dB(A)
Color: Grey RAL 7035
