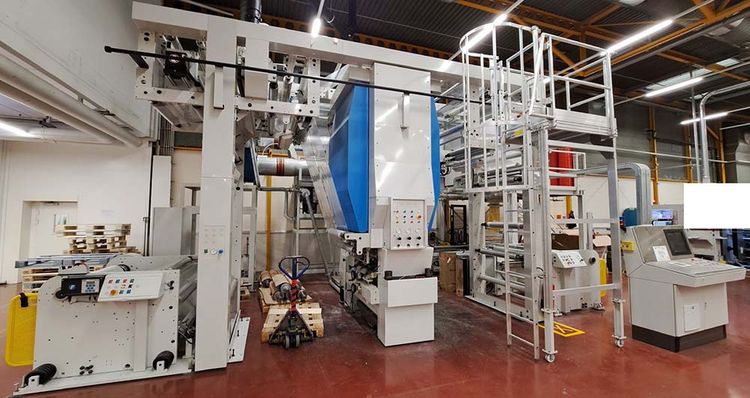

DCM USIMECA BRI 0-1 Lamination machine

Main functions of the machine.
Previously used for priming and varnishing various plastic films and composites, also used after digital printing.
Material width: until 820 mm
PET 12 to 20my
OPP 15 to 75 my
BOPP 12 to 75 my
OPA 30 to 50 my
Paper 45 to 110 g/m2

Composite foils with aluminium 40 to 250 my
Composite foils without aluminium 40 to 250 my

Technical specification:
Unwinding
Roll diameter Up to 1 000 mm
Core diameter 76 and 152 mm
Roll weight Up to 1 000 kg
Side edge control FIFE DP-30 Web Guide Controller.

Pre-treatment station
Corona AHLBRANDT TG 3104-TP

Gravure coating unit:
2 coating carriages : 1 for primer and 1 for varnish.
For coating cylinders: circumference 350 to 860 mm.
Bale width 900 mm
