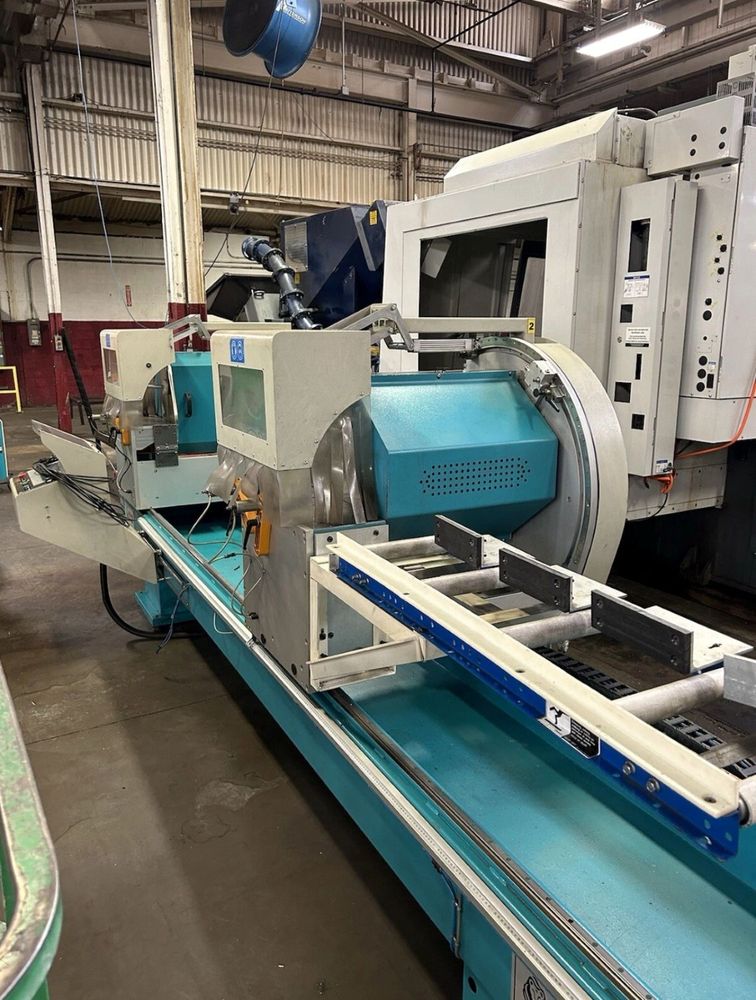

DCY-550 Automatic Double Head Miter Saw

Aslan DCY-550 22" Automatic Double Head Miter Saw
Used for cutting aluminum window frames.
15 hours per week for 18 months.
Approximately 1100 hours.
Clean and in good condition.

Features:
● For smooth, precise, fast and easy cutting of vinyl and aluminum profiles
● Automatic digital positioning and cut-list application for multiple cuts.
● Automatic wedge cutting / slicing feature.
● Saw blade movement is hydro-pneumatically controlled for smooth cutting of aluminum.
● Adjustable cutting speed.
● Automatic angle adjustments from 90° (straight cut) to 45° or vice versa.
● Can cut profiles at all other angles with manual setting.
● Cutting accuracy: +/- 0.2 mm
● The left head is fixed, the right head is moved manually for positioning.
● Easy and fast manual control of the right cutting head for required size.
● Pneumatic profile clamping system.
● Safety guards for saw blade protection.
● Double push-button cutting operation for operator safety.
● Standard vertical pneumatic profile clamping system
● Standard horizontal pneumatic profile clamping system
● Dust ports in the back
● Touch screen control panel
● Spray mist cooling system for the blade
● Strong motor
● Special alloy aluminum table, strong sheet body and durable electrostatic paint

Standard Equipment:
● Machine as described above.
● Safety & instruction manual.
● 1 set of saw blades installed on the machine.
● Spray mist lubrication system for cutting aluminum.
● 4 units of horizontal clamps.
● 2 units of vertical clamps.
● Conveyor and profile support.
● Air gun.

Specifications:
● Motor Power: 3 kw (4 hP) x 2
● Voltages: 230 (3 phase), 460 (3 phase), 50/60 Hz.
● Rotation: 3000 rpm
● Blade Size: 550 mm (22 inch)
● Bore Diameter: 30 mm / 32 mm
● Air Pressure: 90-120 psi (6 - 9 Bar)
● Weight: 1400 kg (3100 lb)
● Dimensions (WxLxH): 512x1240x187 cm (49x202x74 inch.)
