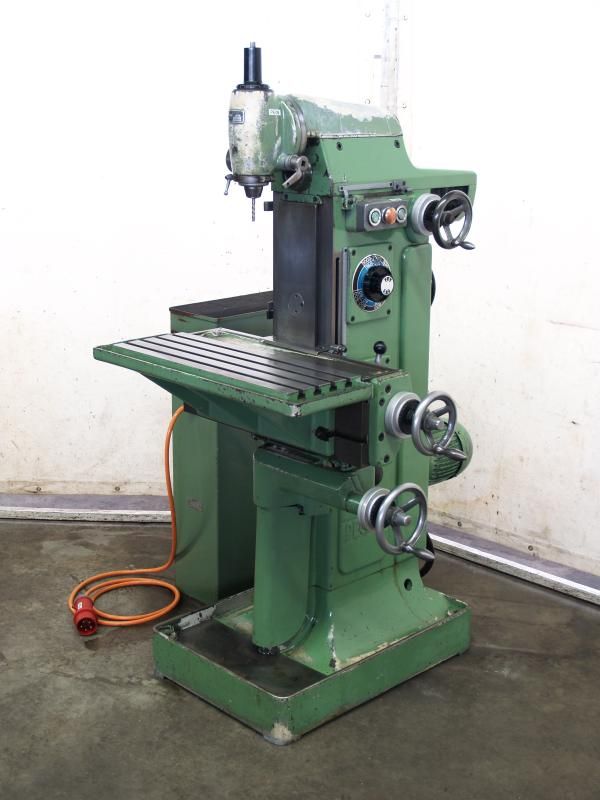

Deckel FP 1 Vertical 2000 rpm (16 steps)

Ref : 2759092-3-AW

Condition : Used

Manufacturer : Deckel

Model : FP 1

Type : Vertical

Spindle Speed : 2000 rpm (16 steps)

Year(s) : 1968

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Axis travel X: 300 mm
Axis travel Y: 150 mm
Axis travel Z: 340 mm
Table size: 600 x 250 mm
Spindle taper: SK 40 – S20 x 2
Spindle speed: 40–2000 rpm (16 steps)
Motor power: 1.0 / 1.4 kW pole-changeable
Electrical connection: 380 V, 50 Hz
Quill travel on vertical milling head: 60 mm
Machine footprint (L x W x H): 1200 x 1100 x 1600 mm
Weight: approx. 1000 kg

Machine Equipped With
Feed in X and Z axis
Two motor speeds and 8 gearbox stages
Fixed angle table
Coolant system in machine base
Adjacent control cabinet
Counterholder with support bearing for horizontal milling SK 40
Very good condition
