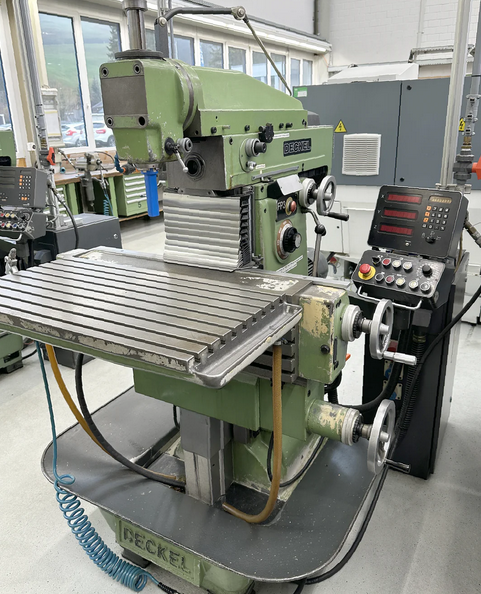

Deckel FP 3 2500 rpm

Longitudinal travel (X) 500 mm
Transversal travel (Y) 300 mm
Vertical travel (Z) 400 mm
Distance spindle to table 470 mm

Spindle speeds 21 steps
Spindle speed range 25–2500 rpm
Spindle taper CN40

Feeds 5–500 mm/min
Vertical quill travel 100 mm
Rapid traverse (X/Y/Z) 1.5 m/min

Table size 800 × 420 mm
T-slot number 9
T-slot width 12 mm
T-slot spacing 45 mm
Table load max 400 kg

Spindle motor 4 kW
Voltage 380 V, 50 Hz, 3-phase

Machine weight approx. 1250 kg
Machine dimensions 2200 × 1800 × 2000 mm

3-axis digital readout
Mechanical handwheels
Swivelling rotary table Ø450 mm
Boring head
Slotting head
Grinding head set
Toolholders set
Centering microscope
Dividing attachment
