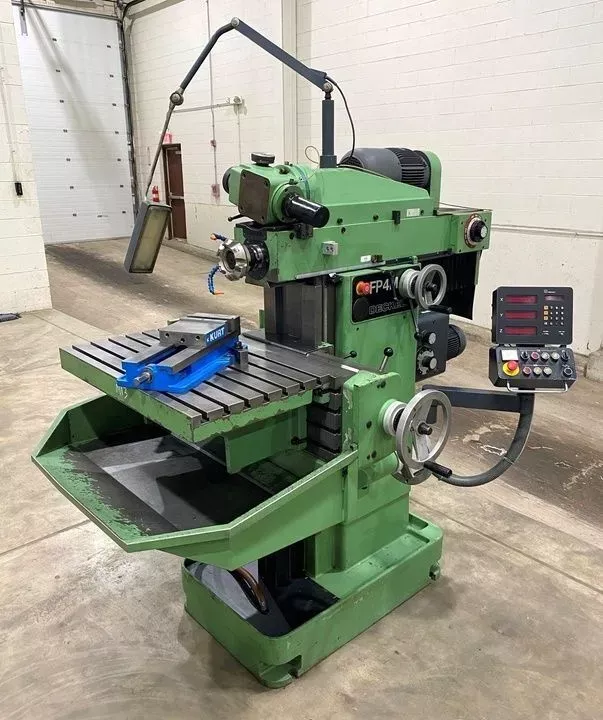

Deckel FP4M 2500 RPM

Longitudinal Travel (X-Axis): 19.7″
Transverse Travel (Y-Axis): 15.7″
Vertical Travel (Z-Axis): 15.7″
Quill Stroke (Z-Axis): 3.5″
Vertical Cutter Head Adjustment Range: 5.9″
Work Surface: 31.6″ x 18″
Number of T-Slots: 7
Distance Between T-Slots: 2.5″
Maximum Table Load: 880 lbs
Main Spindle Drive: 6 HP
Spindle Speed Range: 50 – 2500 RPM (18 speeds)
Speed Progression Factor: 1.25
Spindle Size: NST 40
Feed Range: 0.3 to 24.8 IPM
Rapid Traverse: 51.2 IPM
Dimensions (approx.): 75″ x 48″ x 70″ (H)
Weight (approx.): 3,200 lbs

Convertible vertical/horizontal application
Vertical spindle head with axially adjustable quill, tiltable to any angular position
Dedicated horizontal spindle
Arbor support bearing
Main drive motor with brake
Centralized lubrication of slideways
Electric coolant pump
Angular table
Heidenhain 3-Axis DRO (Glass Scales, In/mm)
Deckel OEM Transformer
Kurt 6″ model D688 Anglock Vise
Miscellaneous hold downs and tool holders
Operator’s Manual
Spare Parts Catalogue
Electrical Schematics
