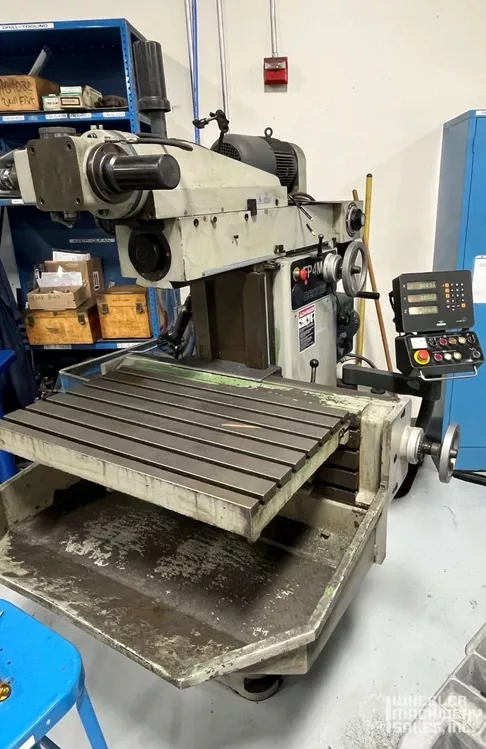

Deckel FP4M Vertical 2500 RPM

X-axis travel 19.7″
Y-axis travel 15.7″
Z-axis travel 15.7″
Quill stroke (Z-axis) 3.5″
Vertical cutter head adjustment range on headstock 5.9″
Work surface 31.6″ x 18″
Number of T-slots 7
Distance between slots 2.5″
Maximum table load 880 lbs
Spindle motor 6 HP
Spindle speed range (18) 50–2500 RPM
Speed progression factor 1.25
Spindle size NST 40
Feed range (18) 0.3–24.8 IPM
Rapid traverse 51.2 IPM
Dimensions 75″ x 48″ x 70″H
Weight 3200 lbs

Convertible vertical/horizontal application
Vertical spindle head with axially adjustable quill (may be tilted to any angular position)
Dedicated horizontal spindle
Arbor support bearing
Main drive motor with brake
Centralized lubrication of slideways
Electric coolant pump
Angular table
Heidenhain 3-axis DRO (glass scales, in/mm)
