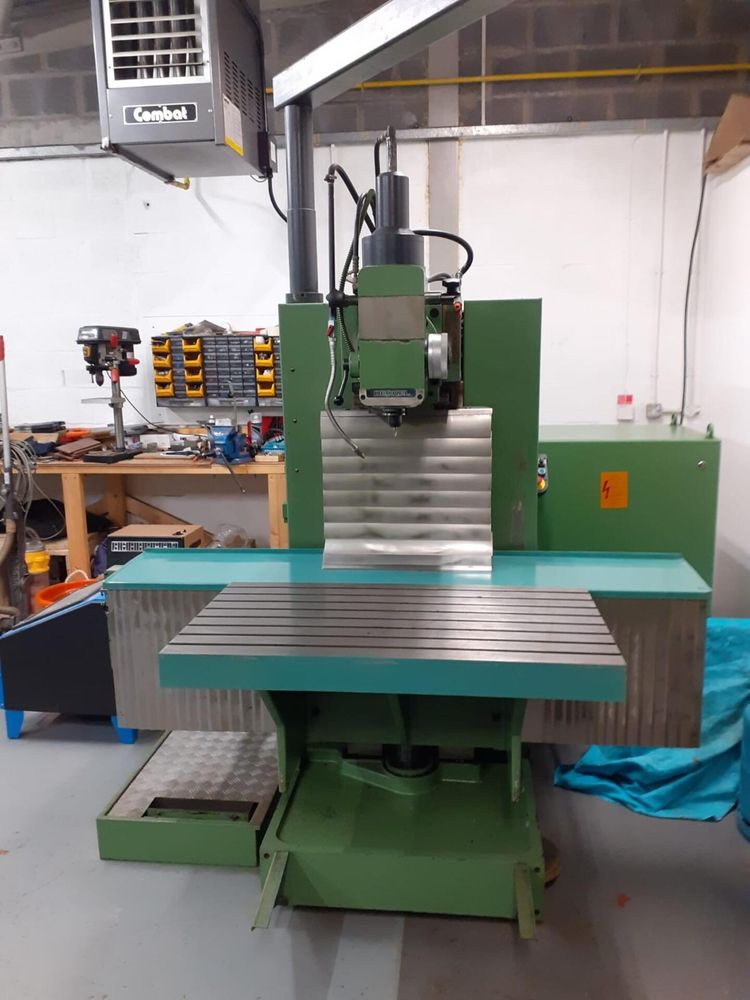

Deckel FP5 NC Vertical 6300 RPM
Ref :
2721134-3-MT
Condition :
Used
Manufacturer :
Deckel
Model :
FP5 NC
Type :
Vertical
Spindle Speed :
6300 RPM
Year(s) :
1986
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Deckel FP5 NC
1986
Table area 1000 x 550 mm
X-axis travel 710 mm
Y-axis travel 600 mm
Z-axis travel 500 mm
Spindle taper SK 40
Spindle speed range 18 – 6300 RPM
Spindle power 7.5 kW
Voltage 380V 3-phase
Machine weight approx. 3665 kg
Control cabinet weight approx. 460 kg
Splash cabinet weight approx. 300 kg
Control Deckel Dialog 4
Currently fitted with vertical spindle head
Capable of using horizontal milling attachment
Horizontal spindle arbors and spacers included
Horizontal spindle support arm not included
Splash cabinet partially restored
New linear bearings fitted on all door rails
Some internal panels re-powder coated
Low hours of operation for its age
Very good working condition
