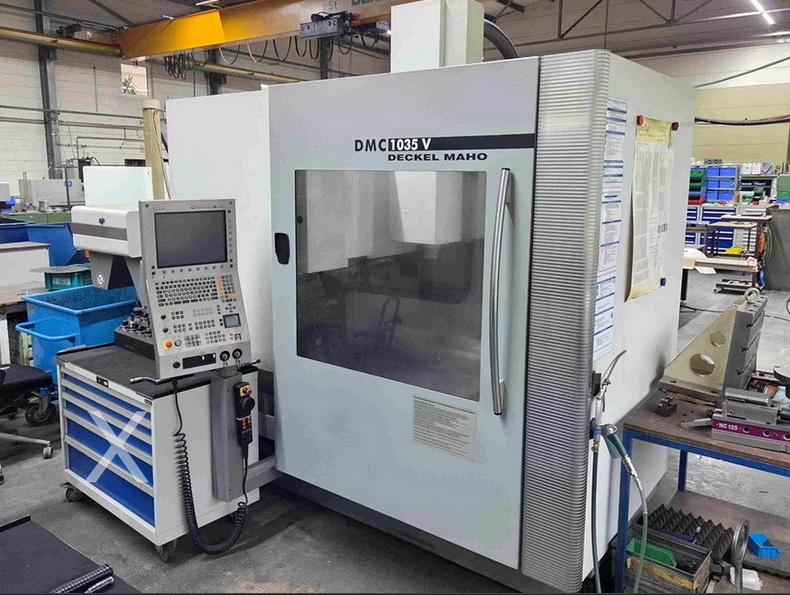

Deckel Maho DMC 1035 V 3 Axis

X travel: 1035 mm
Y travel: 560 mm
Z travel: 510 mm

Control: Heidenhain iTNC 530
Spindle speed range: 20–10,000 rpm
Spindle power: 13 / 9 kW
Maximum torque: 83 / 57 Nm
Tool taper: SK 40 DIN 69871
Table surface: 1200 × 560 mm
Maximum table load: 1000 kg
Table height above floor: 720 mm
Tool positions: 30
Maximum tool diameter: 80 mm
Maximum tool diameter with free position: 130 mm
Maximum tool length: 300 mm
Tool change time: 1.6 sec
Chip-to-chip time: 7.0 sec
Feed rate: 20,000 mm/min
Rapid traverse: 30 m/min
Feed force: 5 kN
Total power requirement: 20 kVA
Machine weight: 4.5 t
Machine dimensions: 3.0 × 3.0 × 2.8 m
Operating hours: 28,796 h
Spindle hours: 11,512 h

Features/Equipment
Automatic tool changer (30 positions)
Chip conveyor
Coolant-air blast changeover
Coolant system
Direct travel measuring system (XYZ)
DXF import function
Electronic handwheel
Operation mode 4
