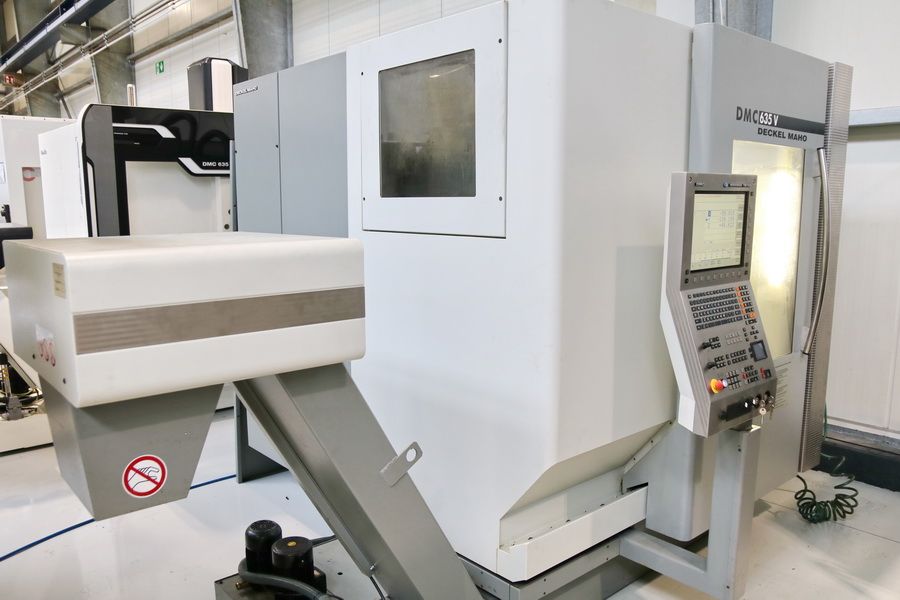

Deckel Maho DMC 635 V 3 Axis

X-axis travel 635 mm
Y-axis travel 510 mm
Z-axis travel 460 mm
CNC control iTNC 530 Heidenhain
Main spindle power 13 / 9 kW
Main spindle speed 20 – 10,000 rpm
Spindle torque 83 / 57 Nm
Spindle taper SK 40
Feed speeds max. 20,000 mm/min
Rapid traverse X-axis 30,000 mm/min
Rapid traverse Y-axis 3,500 mm/min
Rapid traverse Z-axis 10,000 mm/min
Rapid traverse W-axis 1,000 mm/min
Tension force 10 kN
Tool presetter positions 30
Max. tool diameter 80 mm
Max. tool diameter with free toolbox 130 mm
Max. tool length 300 mm
Max. tool weight 6 kg
Table surface 790 x 560 mm
Number of T-slots 4 + 1
T-slot width 4 x 14H12 / 1 x 14H7 mm
T-slot distance 100 mm
Max. table load 600 kg
Table height over floor 720 mm
Machine weight 4,100 kg
Machine dimensions 4.5 x 4.0 x 2.8 m
Total power requirement 20 kVA
Chip conveyor
Coolant pistol
Coolant system
High pressure coolant 6 bar
Test probe Heidenhain TS 640
