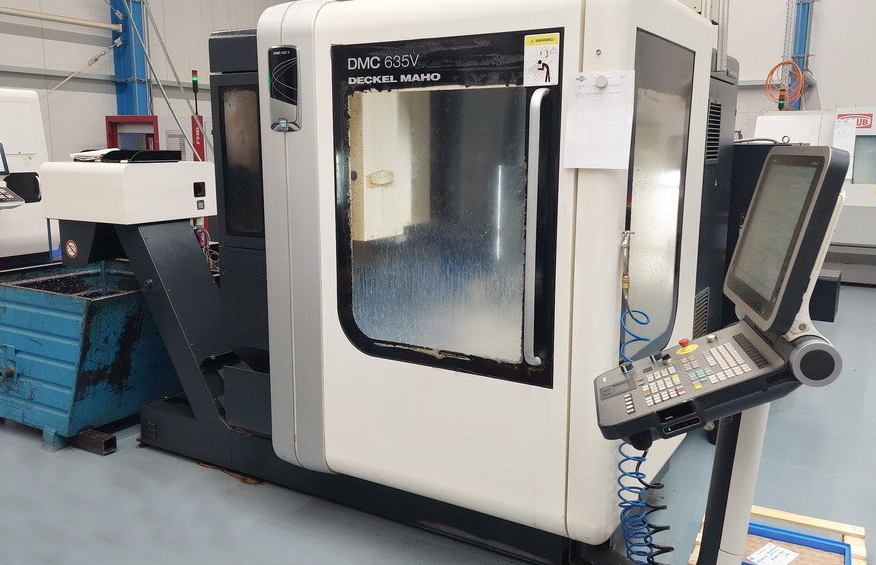

Deckel Maho DMC 635 V 3 Axis

X Axis Travel: 635 mm
Y Axis Travel: 510 mm
Z Axis Travel: 460 mm
Rapid Traverse: 30 m/min
Control: Sinumerik 840 D SL Siemens
ShopMill
Spindle Speed: 20 – 10,000 rpm
Spindle Power: 13 / 9 kW
Maximum Torque: 83 / 57 Nm
Tool Taper: SK 40 DIN 69871
Tension Force: 8 kN
Feed Speed: 1 – 20,000 mm/min
Feed Force: max. 5 kN
Automatic Tool Changer: 30 Positions
Maximum Tool Diameter: 80 / 130 mm
Maximum Tool Length: 250 mm
Maximum Tool Weight: 6 kg
Maximum Total Tool Weight: 80 kg
Tool Change Time Tool to Tool: 1.6 sec
Tool Change Time Chip to Chip: 6.0 sec
Table Surface Area: 790 x 560 mm
Number of T-Slots: 4 + 1
T-Slot Distance: 100 mm
T-Slot Width: 4x 14H12 / 1x 14H7 mm
Maximum Table Load: 600 kg
Table Height Over Floor: 720 mm
Distance Spindle Nose to Table: 120 – 580 mm
Total Power Requirement: 28 kVA
Machine Weight: 3.8 t
Machine Dimensions: 3.5 x 4.0 x 2.7 m
Chip Conveyor
Coolant System
Through Spindle Coolant
Paper Band Filter 20 Bar 600 L
Closed Cabin
Signal Light
Documentation
