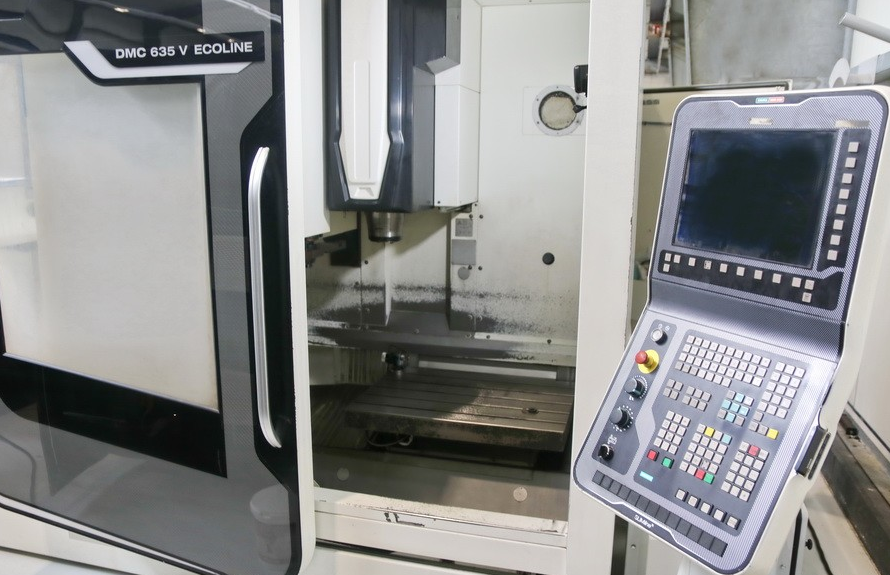

Deckel Maho DMC 635 V Ecoline 3 Axis

DECKEL MAHO DMC 635 V Ecoline
Year 2012

Control SLIMline Siemens
x-travel 635 mm
y-travel 510 mm
z-travel 460 mm
control SLIMline Siemens

Main spindle:
turning speed range - main spindle 20 - 12.000 min/-1
power capacity - main spindel 13 / 9 kW
Torque 83 / 57 Nm
tool taper SK 40

work table:
table surface area 790 x 560 mm
number of T-slots 4 + 1
T-slot - width 4 x 14H12 / 1 x 14H7 mm
T-slot - distance 100 mm
max. table load 600 kg
table height over floor 720 mm

Tool-Presetter:
number of toolpositions 20 pos.
max. tool diameter 80 mm
max. tool-dia with free toolbox 130 mm
max. tool length 300 mm
max. tool weight 6 kg
Total weight, approx. max. 60 kg

feeds:
feed speeds max. 20.000 mm/min
rapid traverse 30 m/min
total power requirement 17 kVA
weight of the machine ca. 4,0 t
dimensions of the machine ca. 4,5 x 4,0 x 2,8 m

Accessories
Chip conveyor
Coolant-Air-Blast-Change-Over
Coolantsystem
Documents
exhaust fan
Renishaw
through spindle coolant 12 bar
