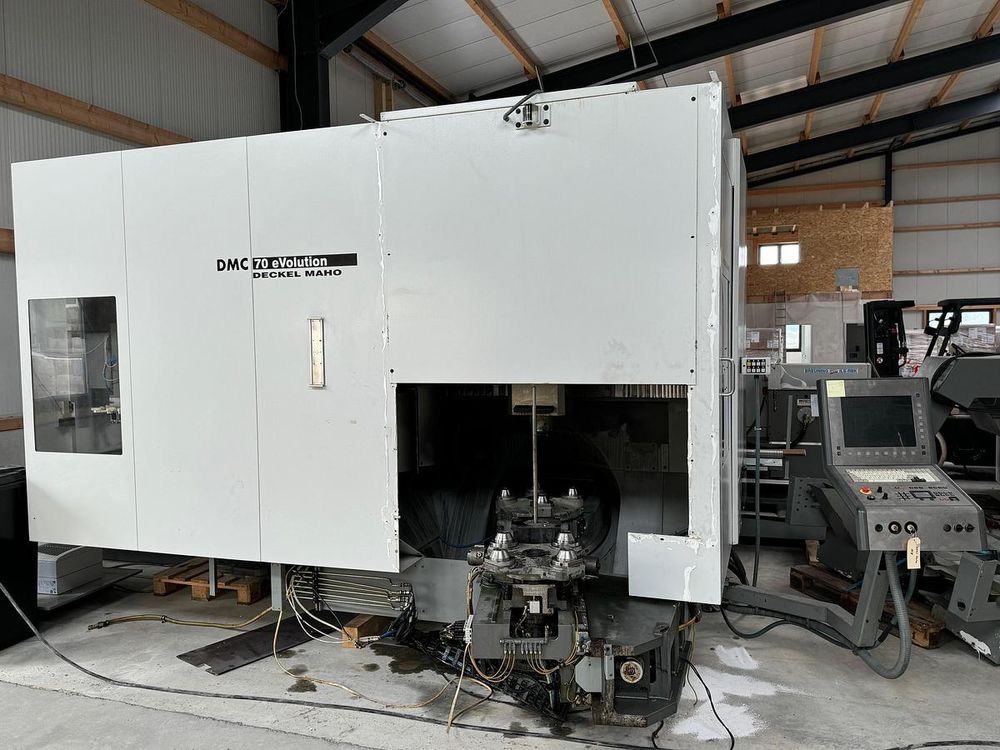

Deckel Maho DMC 70 eVolution 5 Axis

X-axis travel 750 mm
Y-axis travel 600 mm
Z-axis travel 520 mm
B-axis swivel range 180°
C-axis rotation 360°
CNC control system MillPlus iT Heidenhain
Main spindle speed range 20 to 18,000 rpm
Main spindle drive power 35 / 25 kW
Max spindle torque 130 / 87 Nm
Tool holder HSK A63
Table clamping area 700 x 500 mm
Max table load 350 kg
Center bore 30 H6 mm
T-slots 7 x 14 H7 x 63 mm
Table speed range 21.5 rpm
Tool magazine positions 32
Max tool length 315 mm
Max tool diameter 105 mm
Max tool diameter with free adjacent tool box 130 mm
Max tool weight 6 kg
Rapid traverse X/Y/Z 50/50/50 m/min
Feed rate 20,000 mm/min
Feed force X/Y/Z 8/8/7 kN
Total power requirement 48 kVA
Machine weight approx 10 t
Space requirement approx 6.5 x 3.5 x 2.9 m
