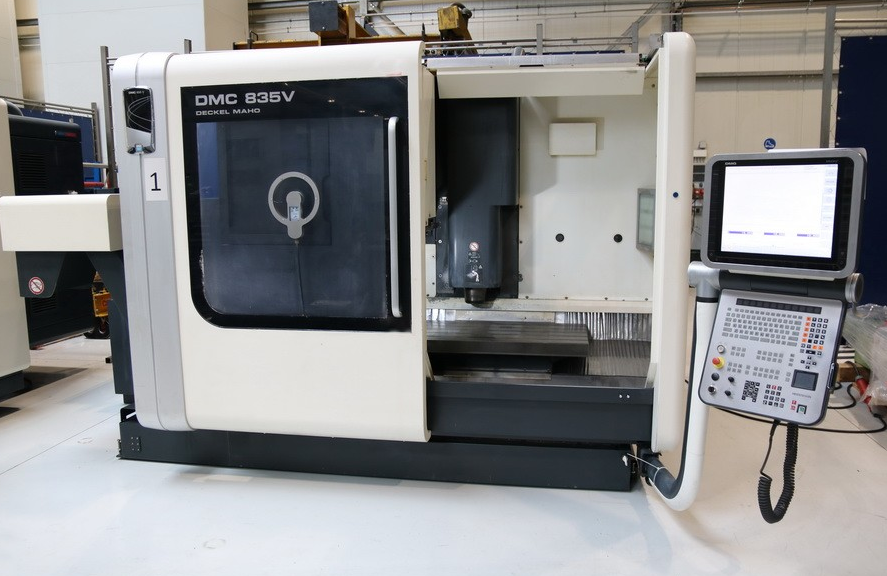

Deckel Maho DMC 835 V New Design -114 3 Axis

X-travel 835 mm
Y-travel 510 mm
Z-travel 510 mm
Control iTNC 530 ERGOLine Heidenhain
Turning speed range main spindle 20-10,000 min⁻¹
Power capacity main spindle 13/9 kW
Tool taper SK 40 DIN 69871
Max. torque 83/57 Nm
Table surface 1,000 x 560 mm
Max. table load 800 kg
Number of T-slots 5
T-slot width 14 mm
T-slot distance 100 mm
Number of tool positions 20
Max. tool diameter 80 mm
Max. tool diameter free toolbox 130 mm
Max. tool length 250 mm
Max. tool weight 6.0 kg
Rapid traverse X/Y/Z 30 m/min
Feed speeds 1-20,000 mm/min
Feed power 5,000 N
Total power requirement 28 kVA
Machine weight approx. 4.0 t
Machine dimensions approx. 4.5 x 3.5 x 2.8 m

FEATURES / EQUIPMENT
Automatic tool changer 20 positions
Chip conveyor
Coolant system
Documents
Electronic hand wheel
Exhaust fan
High pressure coolant
Paper band filter
Rotary screen
Test probe Heidenhain TS 649
