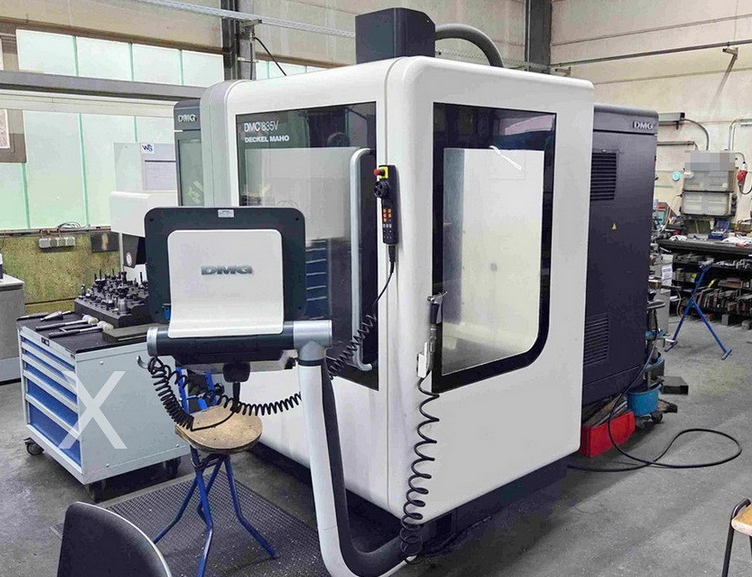

Deckel Maho DMC 835 V New Design 3 Axis

X travel: 835 mm
Y travel: 510 mm
Z travel: 510 mm
Distance spindle nose to table: 120–630 mm
Control: Heidenhain iTNC 530 ERGOLine
Spindle speed range: 20–10,000 rpm
Spindle power: 13 / 9 kW
Tool taper: SK 40 DIN 69871
Maximum torque: 130 / 87 Nm
Table surface: 1000 × 560 mm
Maximum table load: 800 kg
Number of T-slots: 5
T-slot width: 14 mm
T-slot spacing: 100 mm
Tool positions: 20
Maximum tool diameter: 80 mm
Maximum tool diameter with free position: 130 mm
Maximum tool length: 250 mm
Maximum tool weight: 6 kg
Rapid traverse (X/Y/Z): 30 m/min
Feed rate: 1–20,000 mm/min
Total power requirement: 23 kVA
Machine weight: 4.0 t
Machine dimensions: 4.5 × 3.5 × 2.7 m
Operating hours: 20,796 h
Spindle hours: 7,544 h

Features/Equipment
Automatic tool changer (20 positions)
Chip conveyor
Coolant-air blast changeover
Coolant system
Direct probing (XYZ)
Electronic handwheel
Operation mode 4
