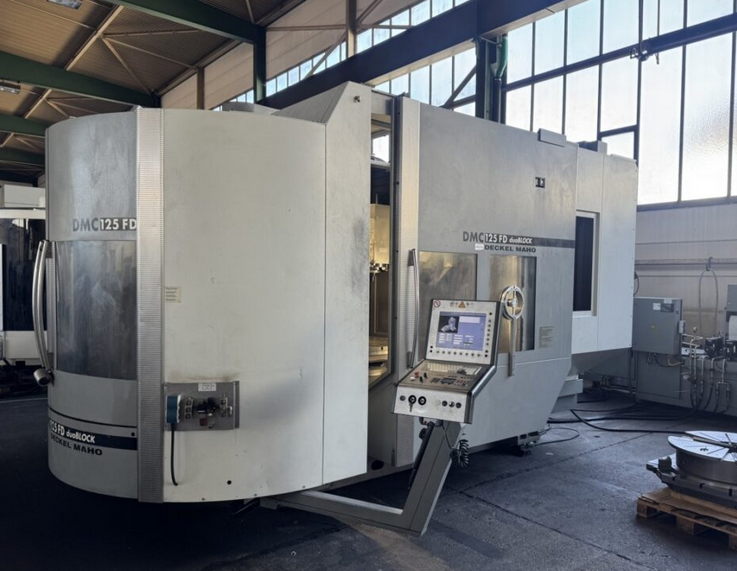

Deckel Maho DMC125 FD DUOBLOCK 5 Axis

X Axis Travel: 1,250 mm
Y Axis Travel: 1,000 mm
Z Axis Travel: 1,000 mm
B Axis Head: -10° to +180° x 0.001°
C Axis Table: 360° x 0.001°
Feed Rate X/Y/Z: 20 - 10,000 mm/min
Rapid Traverse X/Y/Z: 60 m/min

Control: MillPlus
5 Axis Turning/Milling Machining Center
Dual Pallet Changer
Coolant System
Coolant Through Spindle
Chip Conveyor
Rotating Viewing Window
Electronic Handwheel

Table Surface Area: Ø 1,100 mm
Table Load Capacity: 1.50 t

Tool Taper: HSK 100
Spindle Speed: 20 - 10,000 RPM
Spindle Power at 100% Load: 25 kW
Spindle Power at 40% Load: 38 kW
Maximum Torque at 40% / 100% Load: 288 / 187 Nm

Chain Tool Magazine Capacity: 120 Tools
Maximum Tool Diameter: 110 mm
Maximum Tool Diameter with Adjacent Empty Pockets: 230 mm
Maximum Tool Length: 500 mm
Maximum Tool Weight: 30 kg

Spindle Replaced 10/2025
Turning Table Overhaul 2022
