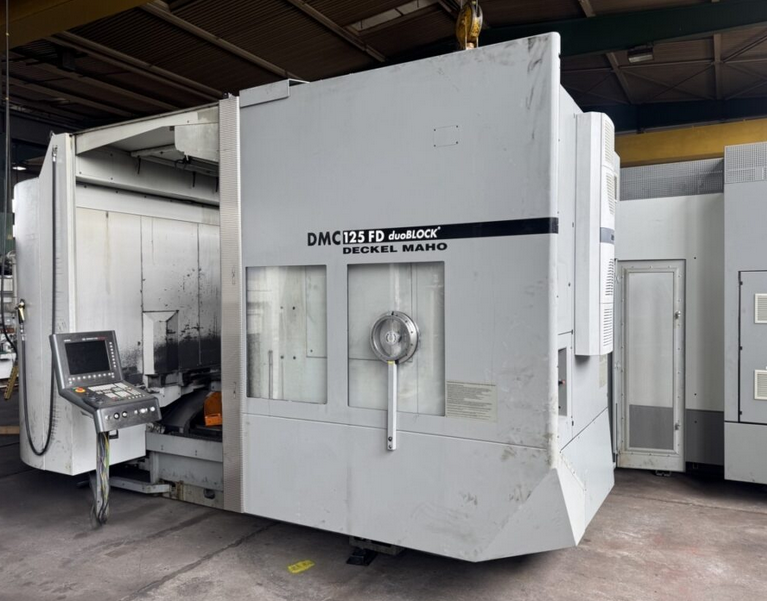

Deckel Maho DMC125 FD DUOBLOCK 5 Axis

X Axis Travel: 1,250 mm
Y Axis Travel: 1,000 mm
Z Axis Travel: 1,000 mm
C Axis Table: 360° x 0.001°
B Axis Head: -10° to 180° x 0.001°
Rotary Table Speed: 10 - 500 RPM
Feed Rate X/Y/Z: 20 - 10,000 mm/min
Rapid Traverse X/Y/Z: 60 m/min

Control: Siemens Sinumerik 840D Powerline
Operating Mode 4
5 Axis Machining Center
Turning Function
Pallet Changer
Coolant Filter System 980 Liter
Chip Conveyor
Coolant Through Spindle
RotoClear

Table Surface Area: Ø 1,100 mm
Table Load Capacity: 1.50 t

Tool Taper: HSK 100
Spindle Speed: 20 - 8,000 RPM
Spindle Speed Gearbox Stage 1: 20 - 1,600 RPM
Spindle Speed Gearbox Stage 2: 1,600 - 8,000 RPM
Spindle Power at 100% Load: 19 kW
Spindle Power at 40% Load: 28 kW
Maximum Torque at 40% / 100% Load: 772 / 492 Nm

Tool Magazine Capacity: 180
Maximum Tool Diameter: 110 mm
