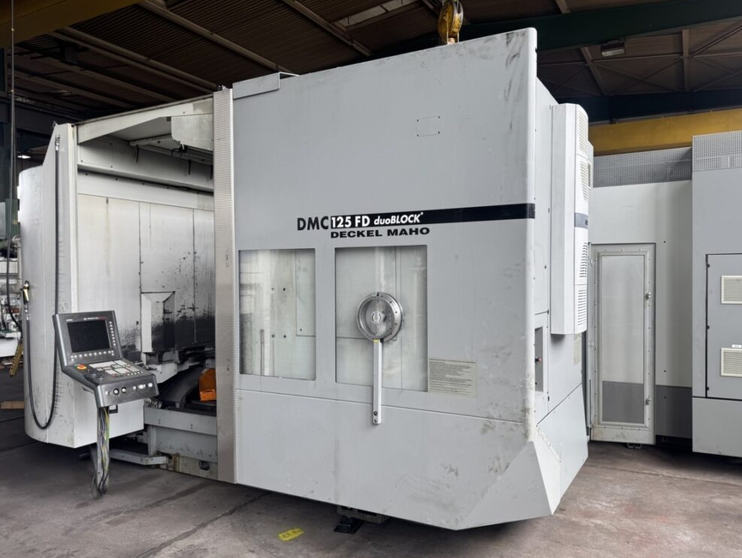

Deckel Maho DMC125 FD duoBLOCK 5 Axis

X-axis travel: 1,250 mm
Y-axis travel: 1,000 mm
Z-axis travel: 1,000 mm
B-axis: -10° to 180° × 0.001°
C-axis: 360° × 0.001°
Feed rate X/Y/Z: 20–10,000 mm/min
Rapid traverse X/Y/Z: 60 m/min
Control: SIN840D pl
5-axis machining center
Turning function
Pallet changer
Coolant filter system: 980 L
Coolant through spindle
Chip conveyor
RotoClear
Table diameter: Ø1,100 mm
Table load: 1.5 t
Spindle speed: 20–8,000 rpm
Spindle speed (gear stage 1): 20–1,600 rpm
Spindle speed (gear stage 2): 1,600–8,000 rpm
Spindle taper: HSK100
Spindle power (100% load): 19 kW
Spindle power (40% load): 28 kW
Maximum torque (40%/100% load): 727/492 Nm
Rotary table speed: 10–500 rpm
Tool magazine capacity: 240 tools
Maximum tool diameter: 110 mm
