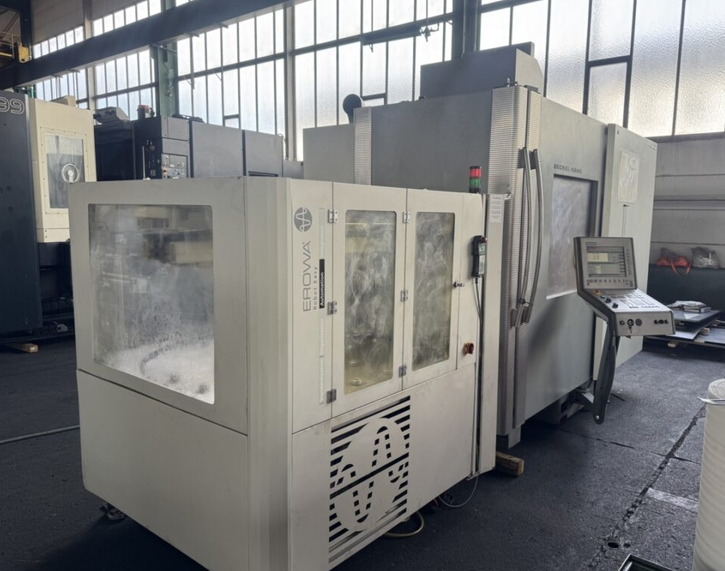

Deckel Maho DMC75Vlinear 3 Axis

X-axis travel: 750 mm
Y-axis travel: 600 mm
Z-axis travel: 560 mm
Control: Siemens SINUMERIK 840D Powerline with ShopMill
Table size: 950 × 650 mm
Maximum workpiece weight: 1000 kg
Feed rate X/Y/Z: 1–90,000 mm/min
Rapid traverse X/Y/Z: 90 m/min
Spindle speed: 1–18,000 RPM
Spindle power (100% duty): 25 kW
Spindle power (40% duty): 35 kW
Tool taper: HSK-A63
Tool magazine: 30 positions
Maximum tool diameter: 80 mm
Maximum tool diameter (with 2 empty pockets): 140 mm
Maximum tool length: 300 mm
Maximum tool weight: 10 kg
Total power: 58 kW
Machine dimensions: 7.0 × 4.0 × 3.5 m
Machine weight: approx. 11 t

Features:
Vertical machining center
EROWA MTS500 pallet system
Tool breakage control
Coolant unit
Coolant through spindle (23 l/min at 40 bar)
Chip conveyor
Electronic handwheel
Used condition
