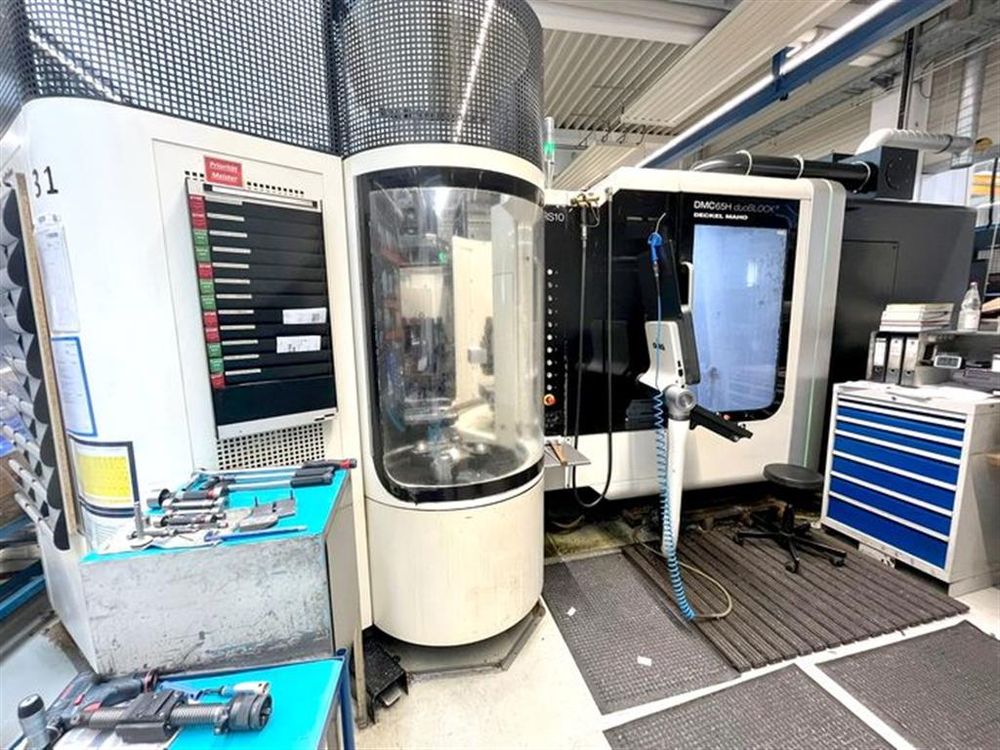

Deckel Maho, DMG DMC 65 H duoBlock 4 Axis

X-Axis Travel: 700 mm
Y-Axis Travel: 700 mm
Z-Axis Travel: 700 mm

Spindle Speed: 18,000 RPM
Spindle Torque: 110 / 84 Nm
Spindle Power: 34 / 28 kW
Tool Holder: SK 40

CNC Control: Heidenhain iTNC 530
Tool Changer Capacity: 180 Tools
Pallet Size: 500 × 500 mm
Maximum Workpiece Weight: 600 kg
Rapid Traverse: 60 m/min

Total Power Requirement: 68 kVA
Machine Weight: Approx. 10.5 t

Space Requirement: 9.5 × 7.5 × 3.4 m
Transport Dimensions: 4.3 × 2.4 × 2.6 m

CNC Control: Heidenhain iTNC 530
Horizontal Machining Center
NC Rotary Table
Pallet Pool System RS 10
Total Pallet Positions: 12
Operator Panel for Loading Station
High-Pressure Coolant Through Spindle: 40 bar
Air Blow Through Spindle Center
Tool Breakage Monitoring (Mechanical)
BLUM Laser Prepared
Oil Mist Extraction System
Probe System: TS 649
Spindle Diagnostic System (SDS)
Chip Conveyor
Electric Handwheel
Wash Gun System
Spindle Hours: Approx. 79,500 h
Power-On Hours: Approx. 112,000 h
