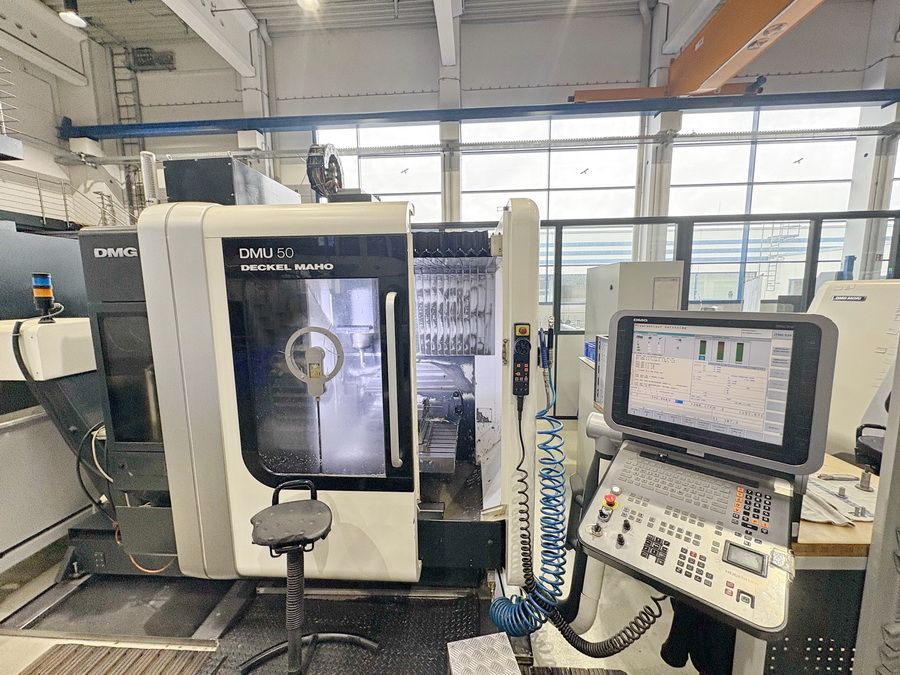

Deckel Maho DMU 50 3 Axis

X-axis travel: 500 mm
Y-axis travel: 450 mm
Z-axis travel: 400 mm

Control: Heidenhain iTNC 530
DXF import function
Backup power outage package

Spindle speed range: 20–10,000 rpm
Spindle power: 13 / 9 kW
Max torque: 83 / 57 Nm
Tool taper: SK 40 DIN 69871

Rapid traverse: 24 m/min
Feed speed: 1–24,000 mm/min
Feed force (X/Y/Z): 4.5 kN

Table surface: 700 x 500 mm
Max table load: 500 kg
T-slots: 7 x 14 x 63 mm

Tool magazine capacity: 60 positions
Max tool weight: 6 kg
Max tool diameter: 80 mm
Max tool diameter (free space): 130 mm
Max tool length: 300 mm
Tool change time (tool-to-tool): 1.6 s
Tool change time (chip-to-chip): 8.0 s

Chip conveyor
Coolant system
Through-spindle coolant: 20 bar
Air blow through spindle center
Coolant air blast change-over
Direct travel measuring system (X/Y/Z)
Oil mist extraction system
Rotary union (spindle)
Rotary screen
Signal lamp (4-color)
Spray gun
Operation mode 4
Vice: 2 pcs

Machine weight: 4.5 t
Machine dimensions: 4.5 x 3.5 x 2.3 m
