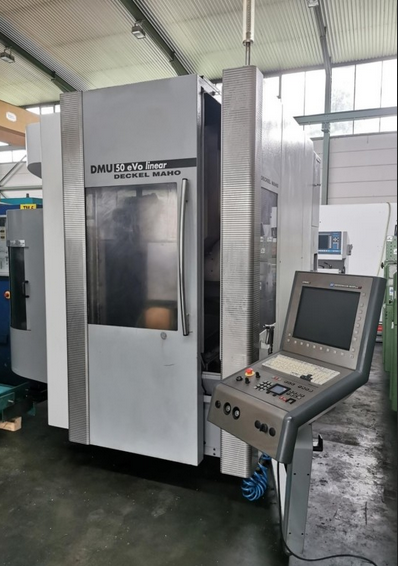

Deckel Maho DMU 50 evo linear 5 Axis

Travel X: 500 mm
Travel Y: 450 mm
Travel Z: 400 mm
B-axis: 0 - 161.955 °
C-axis: 360 °

Control: HEIDENHAIN MillPlus iT
CNC
5-axis machining center
2-axis NC swivelling rotary table
Internal coolant system 40 bar

Spindle taper: SK 40
Spindle speed range: 20 - 18000 rpm
Spindle power max.: 35 kW
Max. spindle torque: 130 Nm

Feedrate stepless: up to 20000 mm/min
Rapid traverse X: 80 m/min
Rapid traverse Y: 50 m/min
Rapid traverse Z: 50 m/min
Rapid traverse B-axis: 40 rpm
Rapid traverse C-axis: 50 rpm

Tool magazine capacity: 30
Tool diameter (2 free positions): 130 mm
Tool diameter (full load): 80 mm
Max. tool length: 300 mm
Max. tool weight: 6 kg

Total power requirement: 52 kVA
Machine weight: 6000 kg

Electronic handwheel
Chip conveyor
Coolant system
Band filter system
