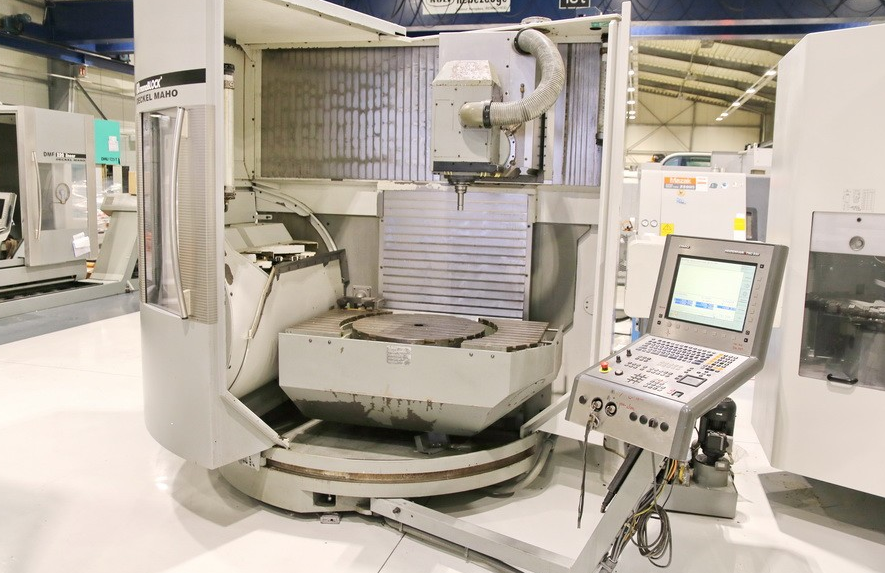

Deckel Maho DMU 80 monoBLOCK 1213 5 Axis

X-axis travel 880 mm
Y-axis travel 630 mm
Z-axis travel 630 mm
5-Axis CNC
C-axis NC-Rotary Table integrated in rigid table
B-axis Swivel Milling Head
CNC control iTNC 530 Heidenhain
Main spindle power 28 / 19 kW
Main spindle speed max. 18,000 rpm
Main spindle torque 121 Nm
Spindle taper HSK-A 63
Swivel B-axis +30° / -120°
NC-Rotary table surface Ø 700 / 1,250 x 700 mm
NC-Rotary table max. load 650 kg
NC-Rotary table rotation 360°
Tool magazine positions 2x16
Max. tool diameter 80 mm
Max. tool diameter with free toolbox 130 mm
Max. tool weight 8 kg
Max. tool length 315 mm
Feed speeds max. 30,000 mm/min
Rapid traverse 30 m/min
Total power requirement 48 kVA
Machine weight 14,000 kg
Machine dimensions 4.5 x 4.0 x 2.6 m
Chip conveyor
Coolant system
Electronic hand wheel
Laser Blum
Operation mode 4
Test probe Heidenhain TS 640
