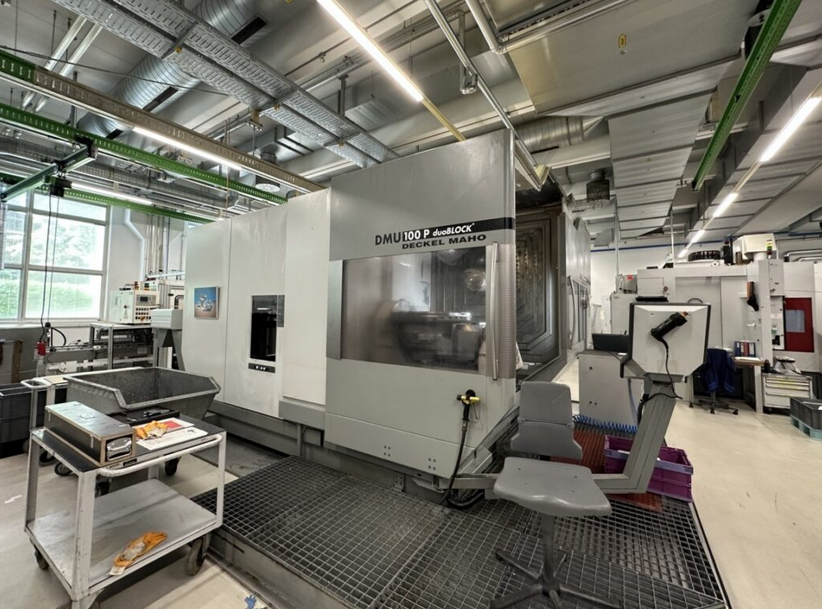

Deckel Maho DMU100P duoBLOCK 5 Axis

X-axis travel: 1000 mm
Y-axis travel: 1000 mm
Z-axis travel: 1200 mm
C-axis: 360 x 0.001°
A-axis: +30 / -130°

Control: SIEMENS SINUMERIK 840D Powerline
Table size: 900 x 700 mm
Spindle taper: HSK-A100
Spindle speed: up to 12000 rpm
Tool magazine: chain type, 180 positions
Total power requirement: 85 kW
Machine weight: approx. 20.5 t
Machine dimensions: 6.5 x 6.1 x 3.5 m

5-axis machining center
Electronic handwheel
NC swivel rotary table
Rotoclear window
Measuring probe ready
BLUM laser tool measurement
Vibration sensor
Tool taper cleaning system
4th operating mode
Internal coolant system (2 pumps, 40 bar and 80 bar)
Chip conveyor
Belt filter system
Mist and smoke separator
Cooling/heating unit
