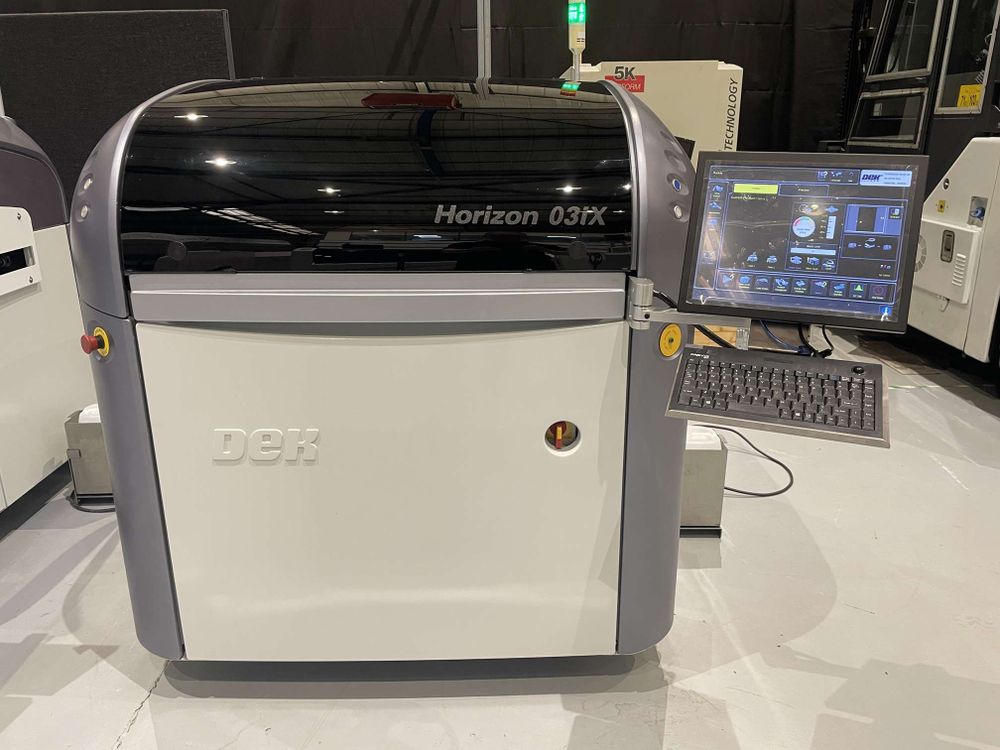

DEK Horizon 03IX

Direction: Left to Right/ Right to Left
Total Board Produced: 017291
Maximum Print Area (mm): 510 x 508.5
Camera: Hawkeye 750 Digital Camera (without licence)(Graphite camera)
Camera Positioning: Rotary motors and encoders with 4 microns resolution
Squeegee Pressure Mechanism: Software controlled, motorised
Under Stencil Cleaning: Blue Under Stencil Cleaner,
fully programmable with wet/dry/vacuum wipe with external solvent tank
Vacuum Pump
Support Pins Included
Voltage: 230V, 50/60Hz, 1 Phase
Air Pressure: 5-8 Bar
Dimensions (mm): 2060 x 1500 x 1570
Weight: 800Kg

DEK Horizon 03IX full-automatic solder paste printing machine
multifunctional plate handling device can automatically position and
clamp PCB of various sizes and thickness, with removable magnetic thimble and
side clamp device, effectively overcome the deformation of the plate,
ensuring uniform printing process.
