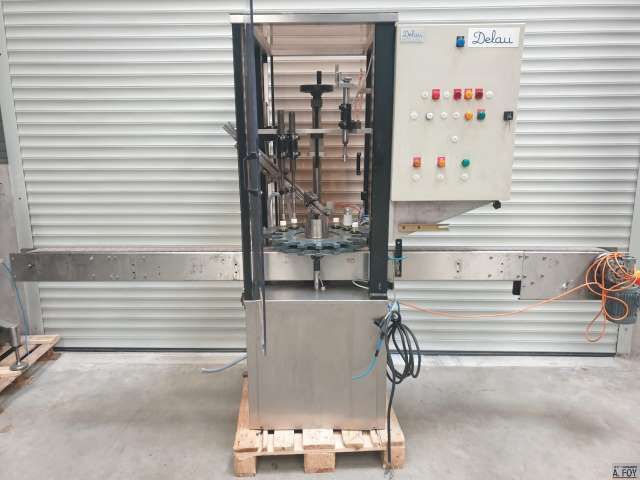

DELAU DIPO, Filler

Ref : 2721147-5-MT
Condition : Used
Manufacturer : -
Model : DELAU DIPO, Filler
Year(s) : 1992
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Weight : 900 kg
Dimensions : (L x W x H) 3.00 x 1.20 x 1.90 M

Equipped :
- Bottle feed conveyor with plastic pallets width 87 mm - length 3000 mm
- Star with 16 cells for transferring bottles to the packaging station
- Product filling station using 2 stainless steel nozzles with drop cut
- Dosing station produced by 2 volumetric stainless steel pistons, adjustable with valve
- Automatic cap removal station
- Currently sold without the vibratory bowl but it can be added.
- Counter-clockwise operation with exit ramp
- Motorized belt conveyor to bring the caps under the placement station on the bottle
- Screwing station with disengageable head
- General training with electronic variation
- Control and power box
- Electrical update with automaton and Omron touch screen, supplement of €8,000.
- Protective casings with security

Current equipment :
- Round bottle : diameter 40 mm
- Cap : diameter 22 mm
- 2 stainless steel filling nozzles : diameter 10 mm
- 2 volumetric stainless steel pistons for product : from 10 to 150 ml

Capacity :
- Bottle from 10 to 500 ml
- Minimum diameter 15 mm - maximum 90 mm
- Minimum height 30 mm - maximum 250 mm

Maximum hourly production of approximately 3500 bottles by adding nozzles and pistons.

Motor power : 1.5 kW
Maximum pneumatic pressure : 6 bar
