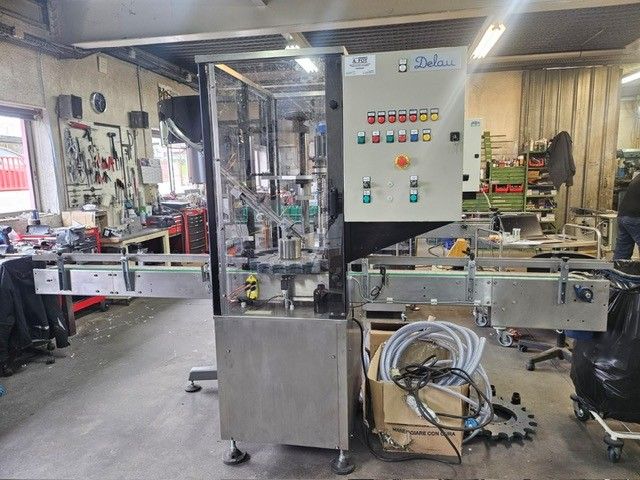

DELAU DIPO Screw Capper

Screw capper / Rotary screwing machine for vials
Weight : 900 kg
Dimensions : (L x W x H) 3.00 x 1.20 x 1.90 M
Automatic screw for glass or plastic bottles,

Equipped :
- Bottle feed conveyor with plastic pallets width 87 mm - length 3000 mm
- Star with 16 cells for transferring bottles to the packaging station

- Automatic cap removal station
- Currently sold without the vibratory bowl but it can be added.
- Counter-clockwise operation with exit ramp
- Motorized belt conveyor to bring the caps under the placement station on the bottle
- Screwing station with disengageable head
- General training with electronic variation
- Control and power box
- Electrical update with automaton and Omron touch screen, supplement of €8,000.
- Protective casings with security

Current equipment :
- Round bottle : diameter 40 mm
- Cap : diameter 22 mm

Capacity :
- Bottle from 10 to 500 ml
- Minimum diameter 15 mm - maximum 90 mm
- Minimum height 30 mm - maximum 250 mm

Maximum hourly production of approximately 3500 bottles
Motor power : 1.5 kW
Maximum pneumatic pressure : 6 bar
