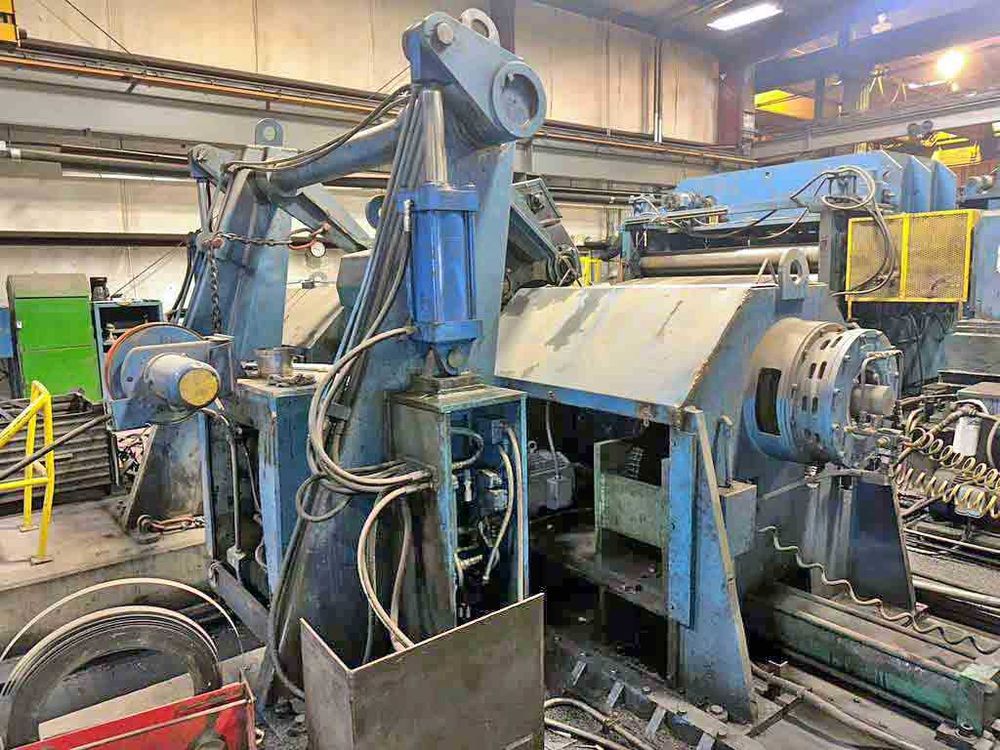

Delta 72" x 0.500" x 60,000# Cut To Length Line

"L" Type Coil Car
Deck Width: 52"
40" Centerline of "V" to Side Mast (80" OD Coil)
Lift Cylinder Body: 9" Dia. x 27" Long
Floor to Bottom of "V" Cradle: Approx. 15"
Self-Contained Hydraulic Power Unit

Delta Cone Type Uncoiler
Solid Non-Expanding Mandrels
Sliding Bases
Wichita Brakes on Both Mandrels
Centerline of Mandrel to Base: 45"
Feedup Drive: Renold WormMaster 60:1 Reducer & Motor
Wichita Clutch

Delta Entry Unit
Fully Articulating Peeler Table
Pinch Rolls: 10" Dia. x 78" Face

Delta Straightener
9 Work Rolls
10" Dia. x 78" Face Rolls
4 over 5 Roll Configuration
One Set of 14.5" Wide Backup Rolls on Center of Work Rolls

Delta Leveler
19 Work Rolls
2.5" Dia. x 78" Face Work Rolls
9 over 10 Roll Configuration
5 Adjustable Flights of Backup Rolls (Cam Type)

Straightener & Leveler Drive Train
0.500" Gauge x 72" Wide Mild Steel
100 HP
Line Speed: 0 - 100 FPM

Side Guides

Double-Stub Edge Trimming Unit: Stamco
Eccentric Adjustment
Motor: 125 HP DC, 500 V, 1750 RPM, 203 Amps
Horsburgh & Scott Reducer: 102 HP, 1.0 Ratio

Scrap Chopper: Paddle Type
One Set of Choppers for Each Side

Delta Shear: Model SS-652-000
Max Gauge: 0.500" x 72" Wide Mild Steel
Single Rake Design
Down Acting
Entry and Exit Driven Pinch Rolls
Pass Height: 66"
Motor: 75 HP, 230 V

Runout Tables: 2 units, 40' Long, on Rails

Operators Console

Isolation Transformer: 145 KVA

Line Direction: Right to Left
Line is Installed
