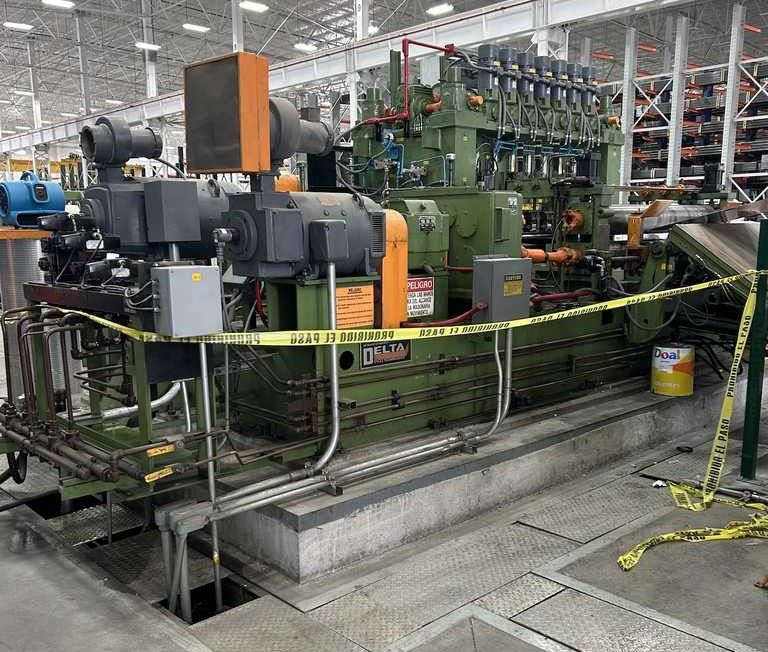

Delta PRECISION CASSETTE LEVELER

Material types: Steel
Material types: Aluminum
Material types: Copper
Material types: Brass
Material width capacity: 61.50 in
Roll face width: 72 in
Material thickness range: 0.020 – 0.135 in
Maximum yield strength: 50,000 PSI
Line speed: Variable up to 250 FPM
Line direction: Left to right

Main leveler unit
Powered backup flights: 7

Cassette 1
Cassette type: Crane removable
Configuration: 5-high
Number of work rolls: 17
Work roll diameter: 1.75 in
Work roll face width: 72 in

Cassette 2
Cassette type: Crane removable
Configuration: 4-high
Number of work rolls: 17
Work roll diameter: 2.00 in
Work roll face width: 72 in

Cassette ejector arm
Transmission unit
DC drive motor with blower
Main gearbox
Distribution gearbox
