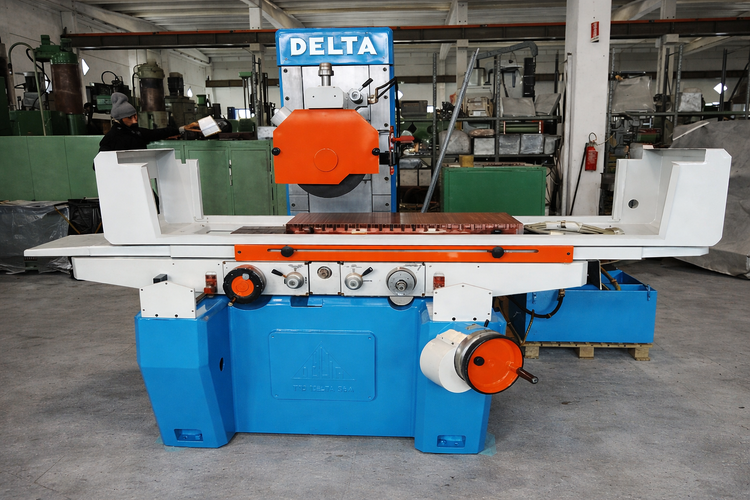

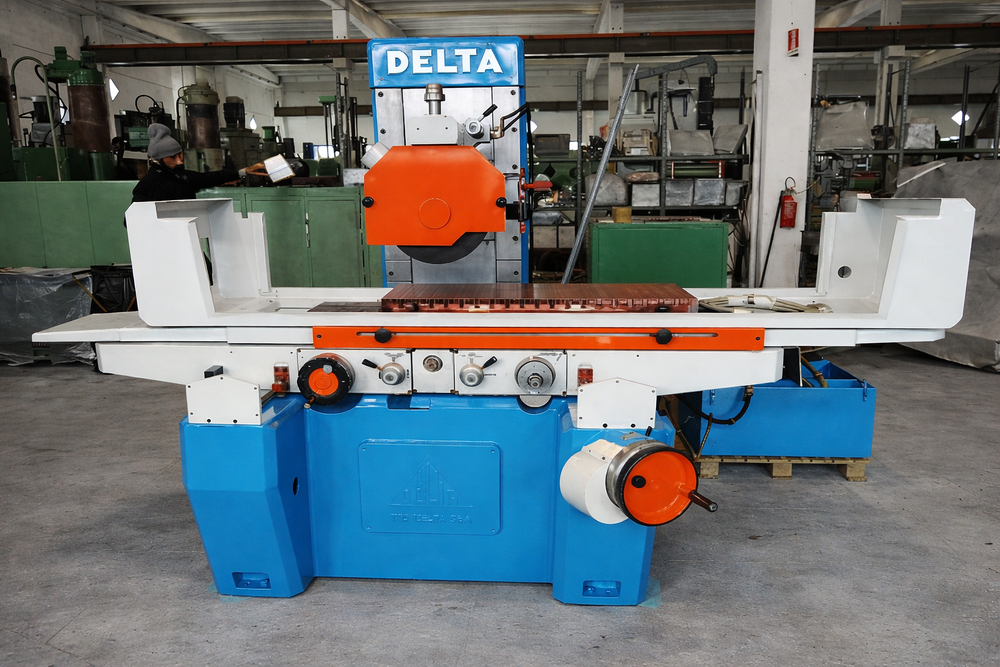

Delta TP 1200/500
Ref :
2791491-3-AW
Condition :
Used
Manufacturer :
Delta
Model :
TP 1200/500
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Grinding length: 1200 mm
Grinding width: 500 mm
Table size: 1600 x 410 mm
Longitudinal travel: 1250 mm
Cross travel: 450 mm
Max distance spindle axis to table: 600 mm
Table travel speed: 0–30 mm/min
Grinding wheel size: 400 x 50 x 127 mm
Grinding wheel motor: 8 HP
Wheel speed (50 Hz): 1400 rpm
Vertical feed per handwheel revolution: 1 mm
Vertical feed divisions: 200
Crossbeam feed per handwheel revolution: 1 mm
Crossbeam divisions: 200
Automatic vertical synchronization: 0.005–0.03 mm
Hydraulic motor: 4 HP
Coolant pump motor: 0.25 HP
Machine dimensions: 3100 x 2050 x 2150 mm
Machine weight: 4300 kg
Magnetic plate: 1000 x 400 mm
