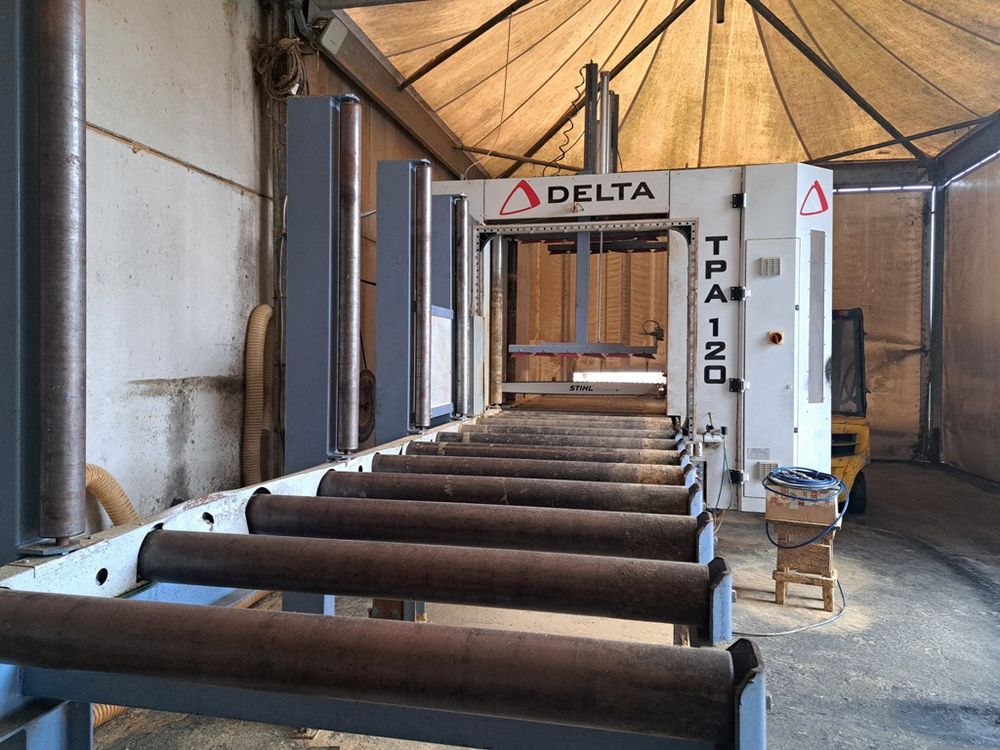

Delta TPA 120

Automatic Pack-cutting Machine (TPA120)
Metallic structure consisting of appropriately sized steel profiles.
Cutting unit with chain-saw with maximum pack transit 1200mm wide and 1200mm high.
Cutting measure
Horizontal chariot lifting system with column-structured lateral guides.
Upward stroke adjustable with speed variator.
Tensioning system to prevent the bar from bending sideways during the cutting phase.
System for tensioning of the cutting chain (Stihl) with stretch-recovering device.
Automatic chain lubricating system via pneumatic pump, with oil sight glass to check for oil shortage on board of the machine.
Suction pipe to evacuate the sawdust.
Front window to allow the operator to view and position the pack on the cutting axis.
Tolerance +/- 2mm
Cutting speed adjustable automatically via PLC
Sawdust evacuation belts
Required operators: 1.
Automatic machine for applying plastic strapping MESSERSI PAKING
From the brochure :The company reserves the right to change technical specifications
Conditions: good
